Description

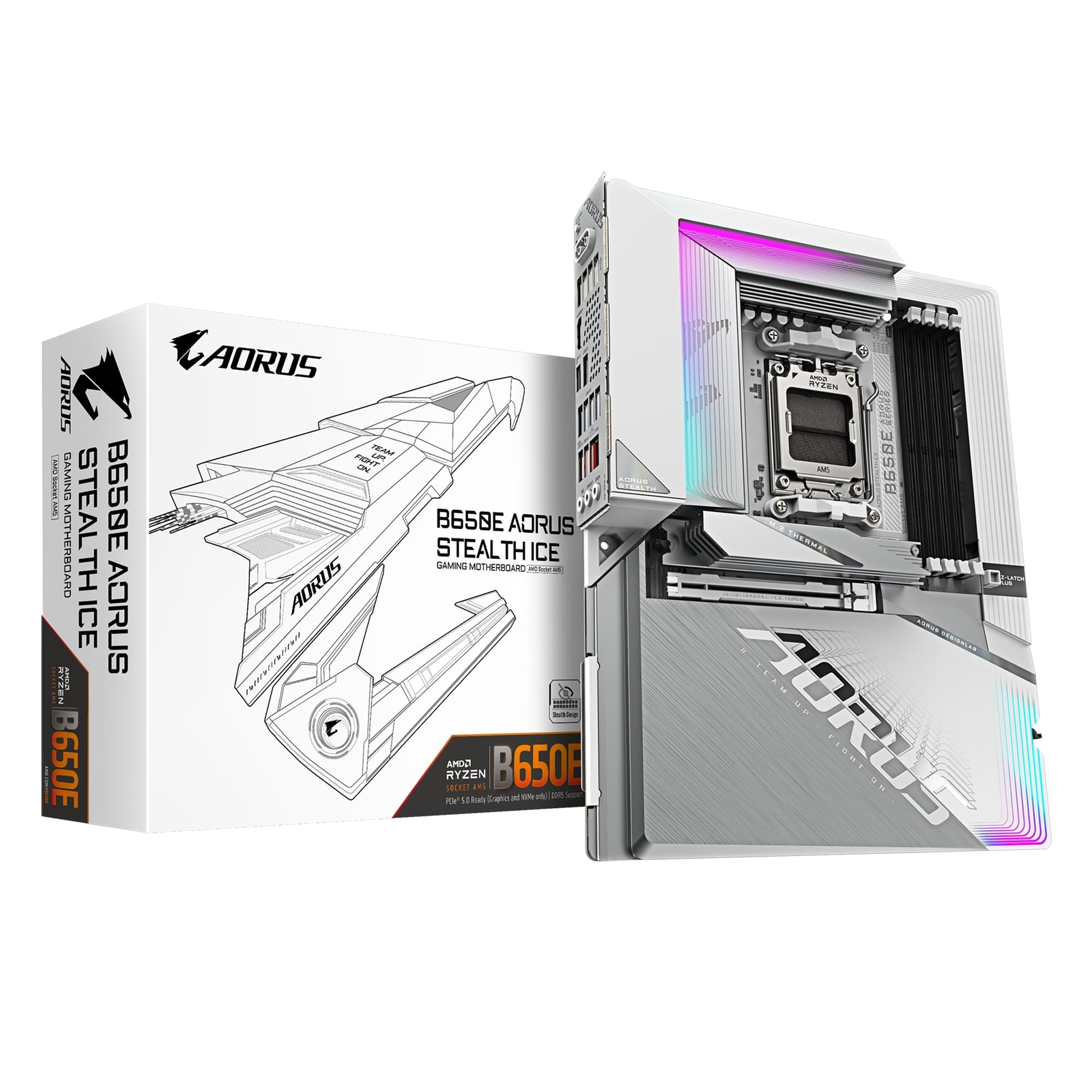

B650E AORUS STEALTH ICE

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors
Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks
EZ-Latch Click: M.2 heatsinks with screwless design
EZ-Latch Plus: M.2 slots with Quick Release & Screwless Design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
UC BIOS: User-Centred intuitive UX with Quick Access function
Back Plate: With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality
Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4
Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
Extended Connectivity: HDMI, Onboard HDMI, USB-C with DP-Alt
Reliable Audio: 8-Ch HD Audio & Audiophile Grade Capacitors
World’s First true White Reverse Connector Motherboard

What is STEALTH Design?
Not just a PC build kit, Stealth Series Product delivers a revolutionary building experience. By having virtually no wire and cable cluttering, a faster assembly time, smoother directional airflow, and better performance, flaunt a cableless seeming desktop with unrestricted space.

Maximized Chassis Compatibility
The Stealth series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints.

Power In Number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Connectivity Versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Seamless Connectivity
Wi-Fi 7
Ultra-high Gain Antenna
2.5GbE LAN

Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

VRM Thermal Armor Advanced
These solid heatsinks are forged to keep your system cool.

M.2 Thermal Guard XL
with M.2 Thermal Guard Backplate

Build Effortless
Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

M.2 EZ-Match
A brand-new exclusive patented design uses magnetic attraction to allow users and gamers to easily align and quickly detach large heat sinks, without the need for additional tools or screws.

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, relieving users from the troublesome screwing required during installation.

Memory, To The Future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.

DDR5 Overclocking Up To
8000 MT/s

BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster
one click to boost native DDR5-4800 to 5000

AMD EXPO / Intel XMP 3.0 User Profile
optimizes memory settings and achieve the best performance for the system

Shielded Memory Routing
Memory routing is shielded within the PCB’s inner layer to protect against interference.

Daisy-Chained Routing
Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

Get everythingUD
GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.

Elevating Performance Together
AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we’re making next-gen performance more user-friendly.

Specification

CPU
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors

Chipset
AMD B650

Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs
and a maximum resolution of 3840×2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module
MediaTek Wi-Fi 7 MT7925
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0×4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 (Note1)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

nternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note2)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C port (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
