Description
PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.
THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.
WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE – PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.
Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

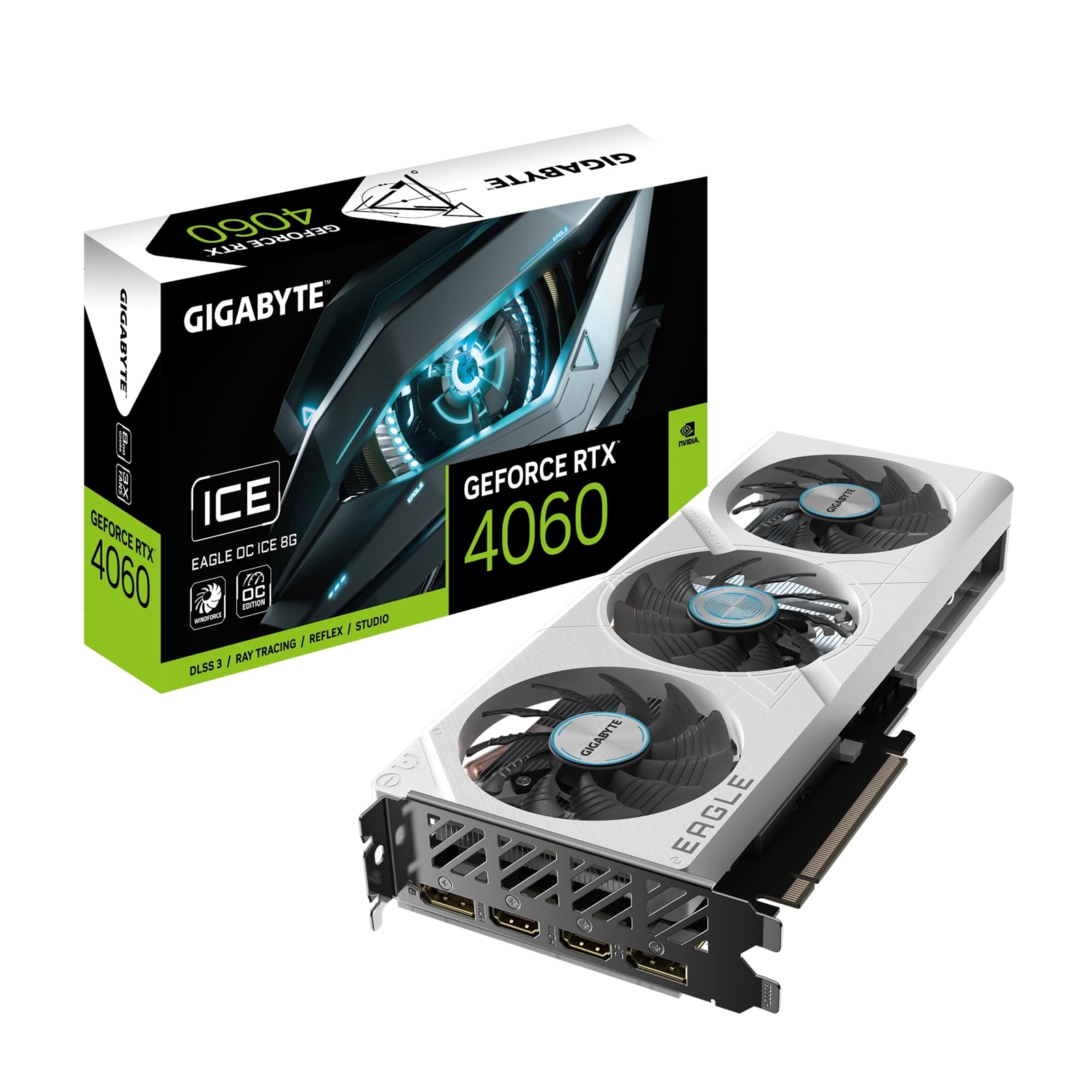

Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS
Protection back plate
CORE CLOCK
2505 MHz (Reference card: 2460 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
ULTRA DURABLE ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
Graphics Processing
GeForce RTX 4060
Core Clock
2505 MHz (Reference card: 2460 MHz)
CUDA Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=272 W=115 H=40 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 Pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2
Accessories
Quick guide
