Description

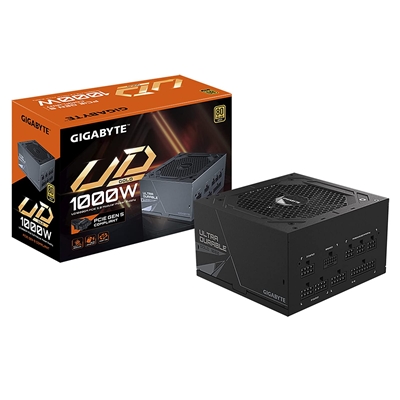

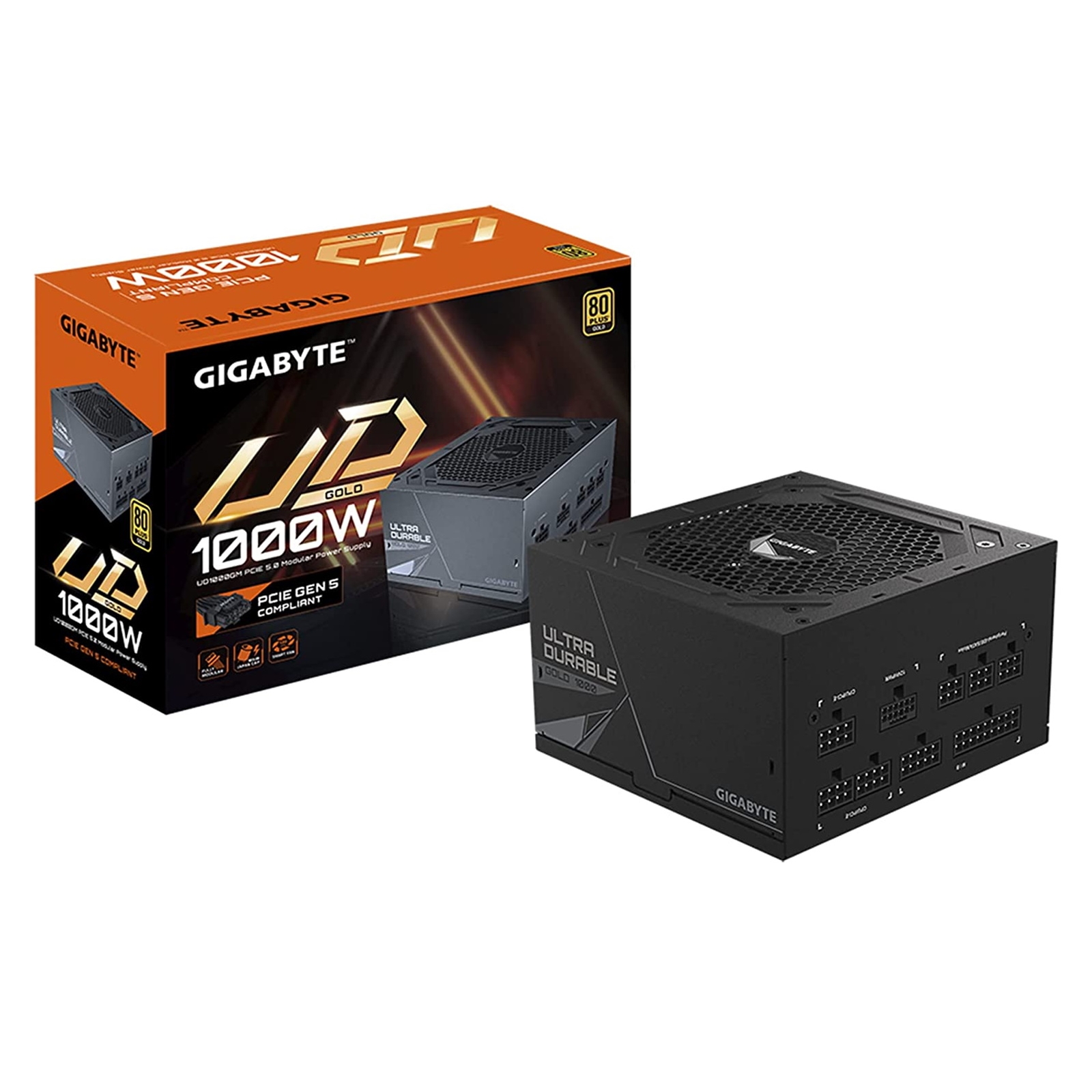

Gigabyte UD1000GM PG5
Power Supply

KEY FEATURES
– Ultra Durable:
– Main Japanese capacitors
– Enhanced thermal solution
– 120mm smart hydraulic bearing (HYB) fan
– OVP / OPP / SCP / UVP / OCP / OTP protection
– Support PCIe Gen 5.0 graphics card
– High-quality native 16-pin cable supports 600W output
– 80 PLUS Gold certified
– Fully modular design
– Compact design
– 10 years warranty

Model
GP-UD1000GM PG5

Type
Intel Form Factor ATX 12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Wattage
1000W

Fan Type
120mm Hydraulic Bearing (HYB) fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat
All black

Connections
1 x 20+4 Motherboard pin
2 x 4+4 pin CPU
1 x 16-pin PCI-e
4 x 6+2 PCI-e
8 x SATA
3 x Peripheral
1 x Floppy

Product Dimension
150 x 140 x 86 mm
