Description

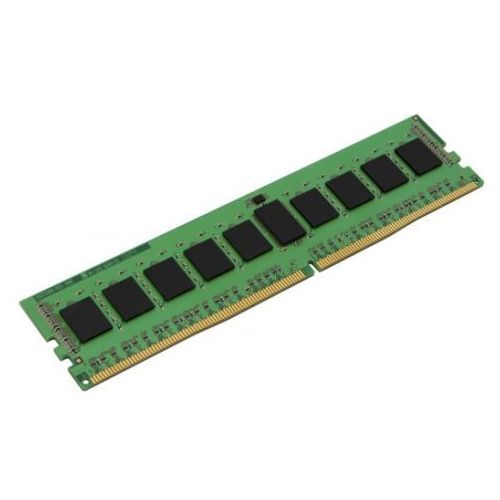

ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Features
- Power Supply: VDD=1.2V Typical
- VDDQ = 1.2V Typical
- VPP – 2.5V Typical
- VDDSPD=2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Description
Specification
- Series: Kingston ValueRAM
- DDR Type: DDR4
- Size: 1 x 16GB
- #Hide#Individual Module Size: 16GB
- #Hide#Total Capacity: 16GB Total
- Speed: 2666 MHz
- Compliance: PC4-21330
- Pins: 288-pin
- CAS Latency: CL19
- Data Integrity Check: Non-ECC
- Low Voltage: No
- Voltage: 1.2V Typical
- Timings: 19-19-19
- Heatsink: No
- #Hide#LED Lighting: No
- Additional Information: See Overview
- Package Type: Blister Pack
- Package Weight: 0.0225 kg
- Warranty: Lifetime
