Description
– Entry level High Speed HDMI 2.0 cable for home and small office applications
– Supports UHD resolutions up to 4096×2160@60Hz 4:4:4 8bit
– Robust PVC housing, nickel connectors, gold flashed contacts
– Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
– HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; 10 year warranty

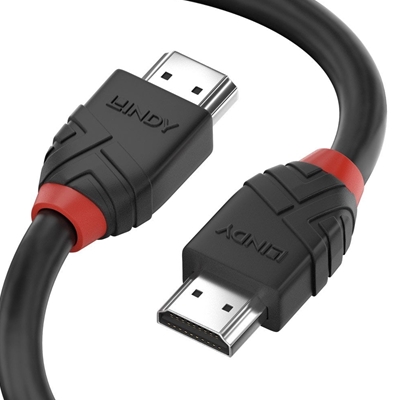

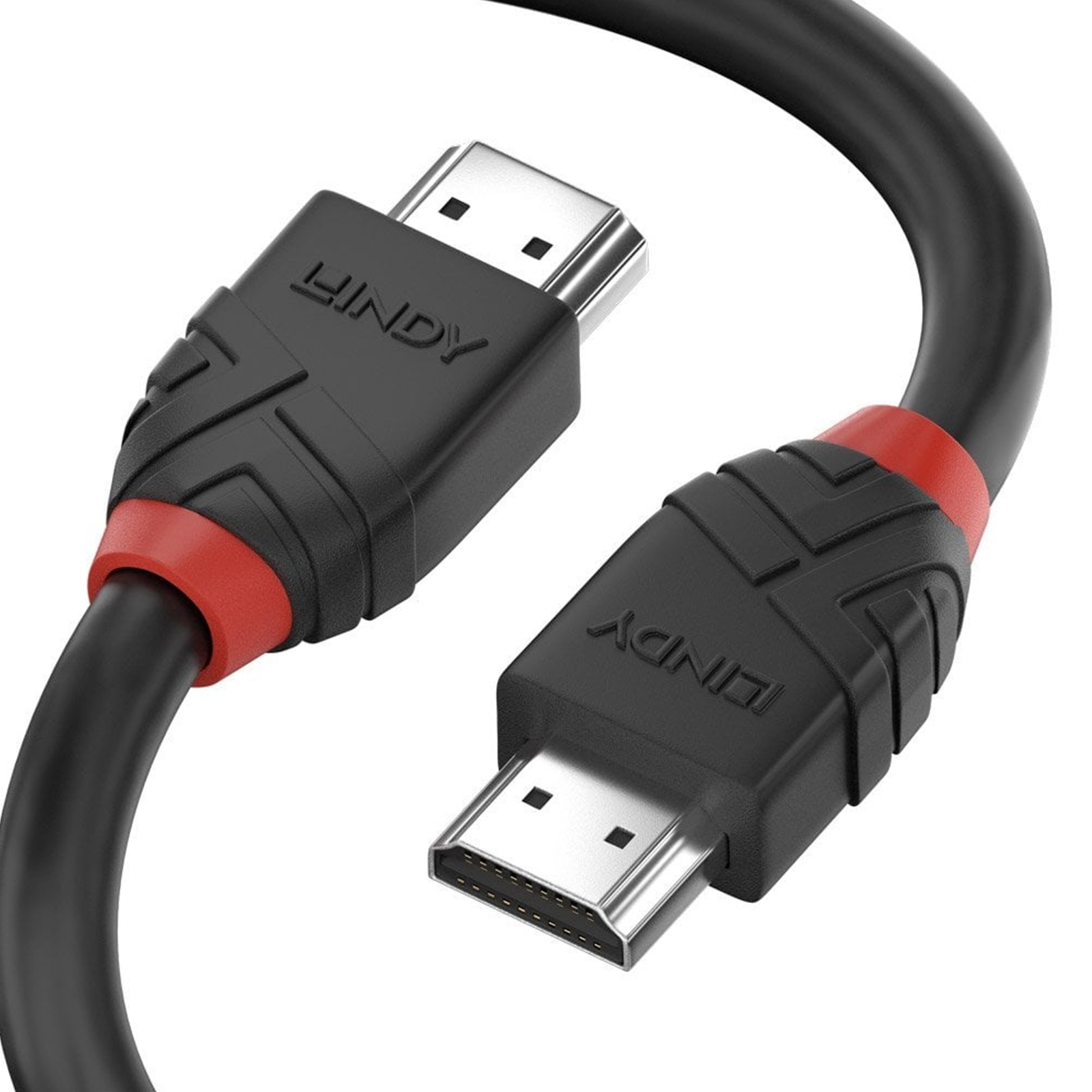

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Black Line HDMI cables are available in lengths from 0.5m to 5m.
Connectors
Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: Gold Flash
Dimensions (approx.) WxDxH: 19.2×34.1×10.6mm
Cable Construction
Length: 5m (16.4ft)
Standard: High Speed HDMI with Ethernet
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper Coated Steel
Conductor Gauge: 30AWG
Shielding: Aluminium Foil
Specifications
Supported Bandwidth: 18Gbps
Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
Minimum Bend Radius: 60mm (2.36in)
Operating Temperature: -10°C – 80°C (14°F – 176°F)
Storage Temperature: -10°C – 80°C (14°F – 176°F)
ATC Approved: No
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
