Description

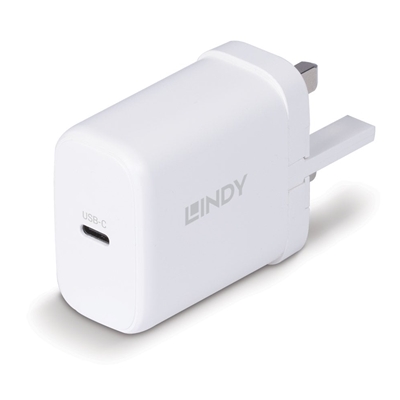

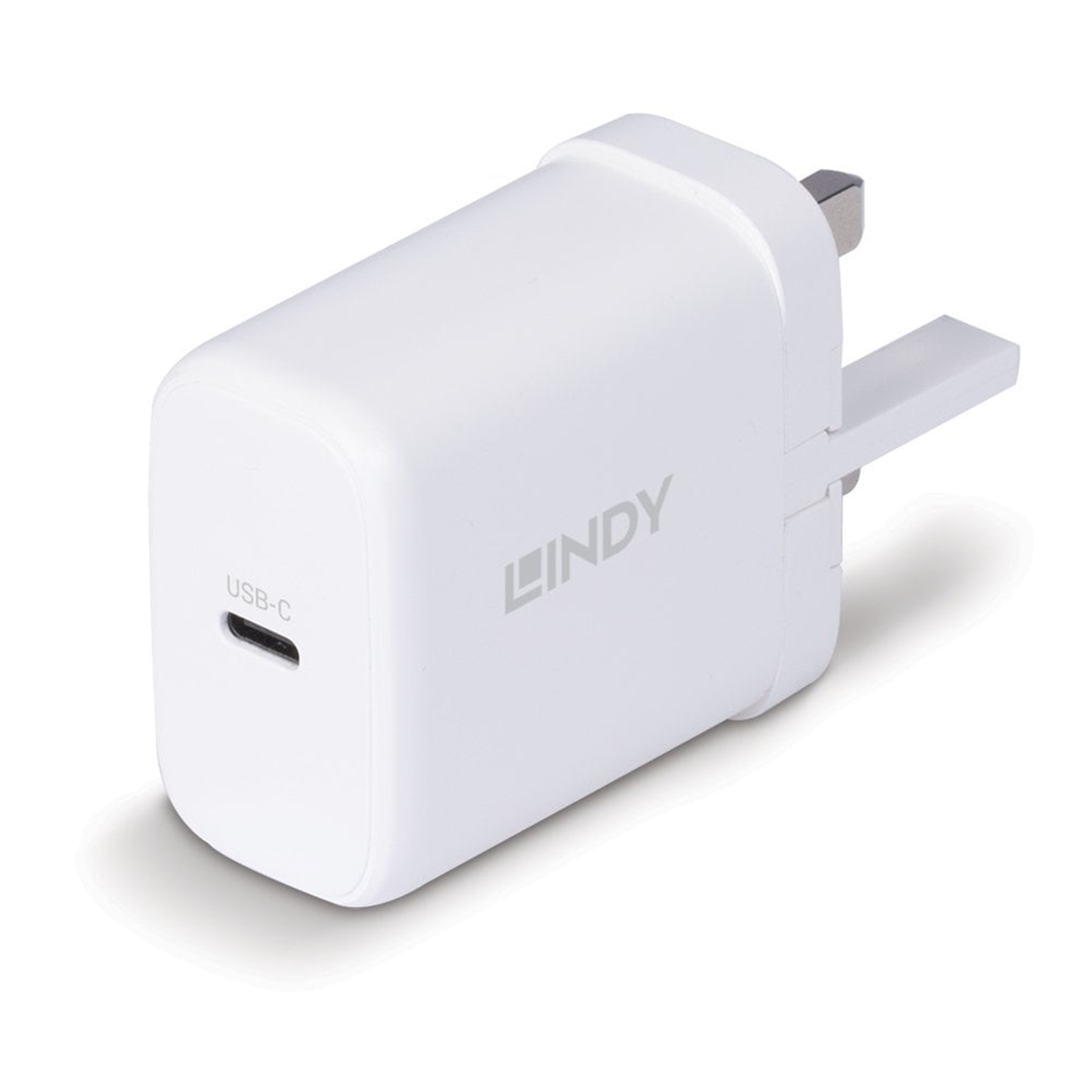

Lindy 65W USB Type C GaN Charger

Key Features
Charges and powers a device via one USB Type C port
Compact, innovative folding design ideal for travelling with no protruding pins to damage your valuable equipment.
65W GaN technology provides fast charging for smartphones, tablets, laptops and other mobile devices
Compact design and lightweight for maximum mobility
Built-in safety features such as overvoltage and overcurrent protection
2 year warranty

The Lindy 65W USB Type C GaN Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.

Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting GaN technology of 65W and PPS (Programmable Power Supply), connected devices can be provided with faster and smarter charging than what is possible from a standard Type C charger supplied with many devices; it can modify voltage and current in real-time by feeding maximum power based on a device’s charging status.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.

Connectors

Input
UK Plug

Output
1x USB Type C Female

Specifications

Power Input
100-240VAC, 50/60Hz 1.5A

Power Output
USB Type C: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A,
PPS: 3.3 11V 4.05A, 16V 3A

USB Power Delivery
PD 3.0 (USB Type C port)

Max. Total Power
65W

Output Voltage Accuracy
± 5%

Average Active Efficiency
81.38%

Efficiency at Low Load (10%)
80.06%

No-load Power Consumption
0.1 W

Additional Features
Overcurrent, overvoltage, overtemperature and short-circuit protection

Physical Properties

Dimensions (approx.) W x D x H
26.80 x 85.30 x 41.60 mm (1.05 x 3.35 x 1.63 in)

Connector Material
Copper

Housing Material
PVC

Net Weight
0.04 kg (0.09 lb)

Operating Temperature
0°C – 25°C (32°F – 77°F)

Operating Humidity
20 – 90% RH (non-condensing)

Storage Temperature
-20°C – 70°C (-4°F – 158°F)

Storage Humidity
20 – 90% RH (non-condensing)

Colour
Black

Miscellaneous

Packaging Type
Carton Box

Packaging Dimensions
80 x 100 x 45 mm (3.15 x 5.12 x 1.77 in)

Gross Weight
0.06 kg (0.13 lb)

Warranty (Years)
2

Product Compliance
CE, RoHS, REACH, ErP
