Description

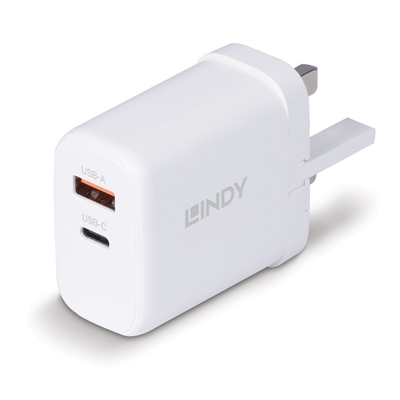

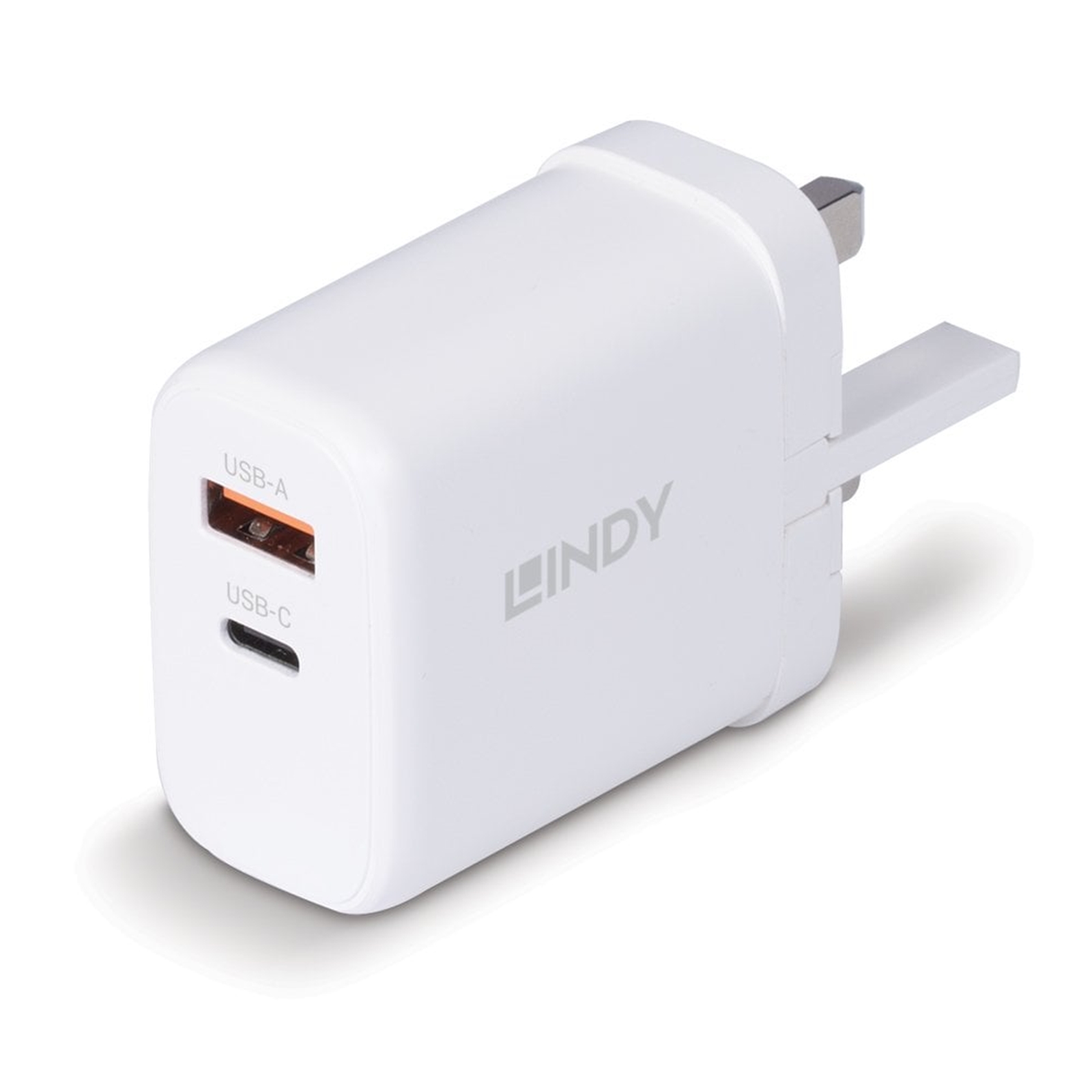

Lindy 65W USB Type A & C GaN Charger

Key Features
Charges and powers two devices simultaneously via a USB Type C and a USB Type A port
Compact, innovative folding design ideal for travelling with no protruding pins to damage your valuable equipment.
65W GaN technology via the USB Type C port provides fast charging for smartphones, tablets, laptops and other mobile devices
Compact design for maximum mobility
Built-in safety features such as overvoltage and overcurrent protection
2 year warranty

The Lindy 65W USB Type A & C GaN Charger can charge two devices simultaneously. 65W Power Delivery and PPS are supported by the USB Type C port while the USB Type A port provides fast charging with up to 45W. When both ports are used in parallel a maximum power of 20W will be provided.

Featuring both a USB Type C female and a USB Type A female port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 65W and PPS (Programmable Power Supply), connected devices can be provided with faster and smarter charging than what is possible from a standard Type C charger supplied with many devices; it can modify voltage and current in real-time by feeding maximum power based on a device’s charging status.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.

Connectors

Input
UK Plug

Output
1x USB Type A Female
1x USB Type C Female

Specifications

Power Input
100-240VAC, 50/60Hz 1.5A

Power Output
USB Type C: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A
USB Type A: 5V 3A, 9V 2A, 12V 1.5A
USB Type A & C: 5V 2.4A
PPS: 5V-11V 4.05A, PPS 5V-16V 3A

USB Power Delivery
PD 3.0 (USB Type C port)

Max. Total Power
65W

Output Voltage Accuracy
± 5%

Average Active Efficiency
81.38%

Efficiency at Low Load (10%)
80.06%

No-load Power Consumption
0.1 W

Additional Features
Overcurrent, overvoltage, overtemperature and short-circuit protection

Physical Properties

Dimensions (approx.) W x D x H
26.80 x 85.30 x 41.60 mm (1.05 x 3.35 x 1.63 in)

Connector Material
Copper

Housing Material
PVC

Net Weight
0.04 kg (0.09 lb)

Operating Temperature
0°C – 25°C (32°F – 77°F)

Operating Humidity
20 – 90% RH (non-condensing)

Storage Temperature
-20°C – 70°C (-4°F – 158°F)

Storage Humidity
20 – 90% RH (non-condensing)

Colour
White

Miscellaneous

Packaging Type
Carton Box

Packaging Dimensions
80 x 100 x 45 mm (3.15 x 5.12 x 1.77 in)

Gross Weight
0.06 kg (0.13 lb)

Warranty (Years)
2

Product Compliance
CE, RoHS, REACH, ErP
