Description

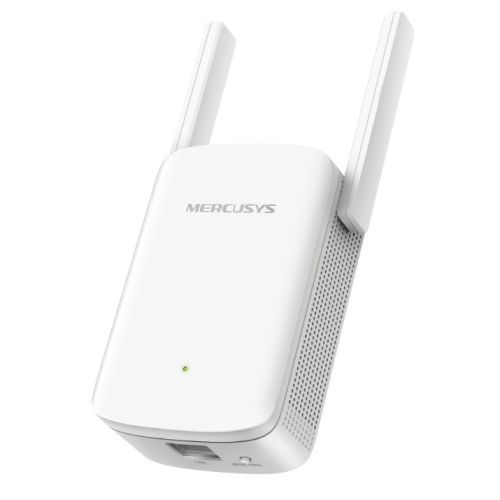

AX1500 Wi-Fi 6 Range Extender
- Dual Band Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
- Works with Any Routers – To Extend WiFi to Where You Need It Most.
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Wi-Fi 6 Brings Your Network to a Next Level
Armed with Wi-Fi 6 , ME60X improves virtually every aspect of your network: speed, efficiency, and capacity.
Extend WiFi to Where You Need It Most
Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This AX1500 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.
Cover Your Whole Home with EasyMesh
ME60X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both WiFi bands to enjoy super-fast connections—ideal for HD streaming and gaming.
Effortless One-Touch Setup
Press the WPS button on your router and extender to expand your Wi-Fi coverage in seconds.
Step 1: Press the WPS button on your router and the ME60X Step 2: Relocate the ME60X to the best place with smart signal indicator
Built-In Access Point Mode
ME60X is more than just a WiFi range extender. Connect your wired internet connection to the ME60X via Ethernet cable to turn it into a dual band WiFi access point.
Control at Your Fingertips
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Description
Specification
- Primary Function: Range Extender
- #Hide#Access Point Mode: Yes (Access Point Mode)
- #Hide#Range Extender Mode: Yes (Range Extender Mode)
- #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
- Bands: Dual Band
- Wi-Fi Rating: AX1500
- Max Single Band Wi-Fi Rate: 1200 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Interface(s): 1 x Gigabit Ethernet Port
- Wireless Standards: “IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz”
- Antenna(s): 2 External Antennas
- Button(s): “WPS Button, Reset Button”
- Power Supply: Wall plug
- Power Consumption: 10W
- Dimensions: 84.7 x 39 x 112 mm (Without Plug)
- Weatherproof: No
- Frequency: 2.4GHz: 300 Mpbs
5GHz: 1200 Mbps - Reception Sensitivity: 5GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm2.4GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm - Wireless Modes: Range Extender / Access Point Mode
- Security: “WPA, WPA2, WPA3-PSK”
- Additional Features: See Overview
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing - Package Contents: Wi-Fi Range Extender ME60X
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.3450 kg
- Warranty: 3 Years
