Description

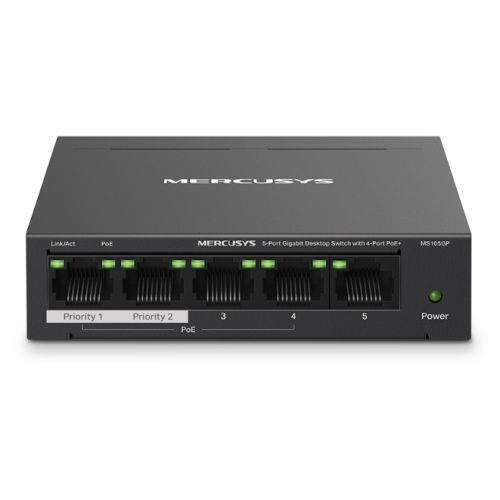

5-Port Gigabit Desktop Switch with 4-Port PoE+
- Full Gigabit Ports: 5x 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
4 PoE+ Ports (65 W Budget) for Network Deployment
All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* for the 4x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet: Two Cables in One
- No Fuss – No need for electricians; simplify installation and deployment.
- Cost-Efficiency – Getting rid of extra cables and power adapters will save money on infrastructure.
- Flexibility – Deployment in complex situations is made possible by more placement possibilities.
- Power Management – Improves power usage while intelligently protecting your gadgets from power surges.
- IEEE 802.3af/at – PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play
MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
- PoE Ports (RJ45): Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Standards and Protocols: IEEE 802.3x Flow Control
- Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Dimensions: 99.8 x 98 x 25 mm
- Mac Address Table: 2K
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Environment: perating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing - Package Contents: 5-Port Gigabit Desktop Switch (MS105GP)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.7000 kg
- Warranty: 3 Years
- #Hide#POE: Yes
