Description

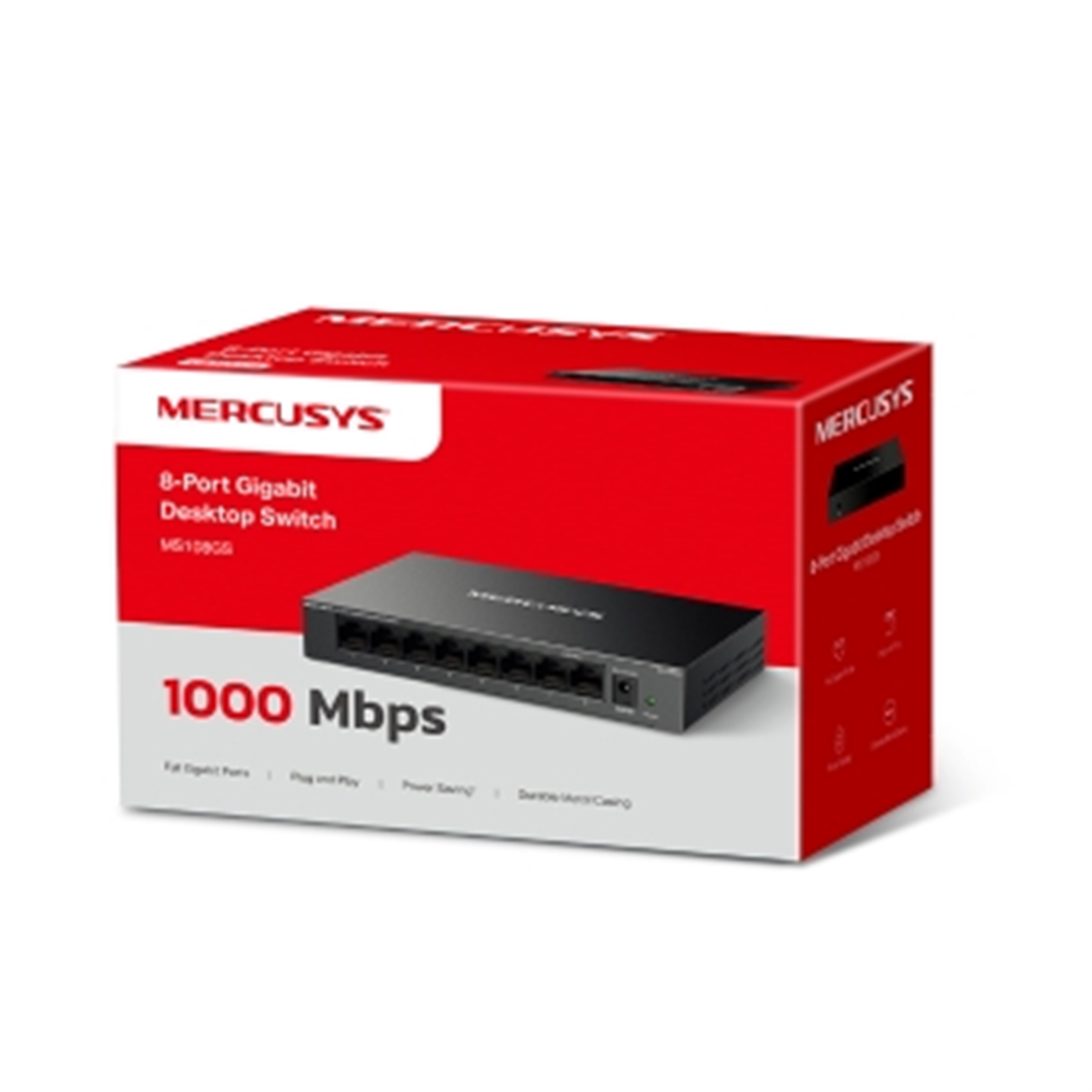

MS108GS 8-Port Gigabit Desktop Switch
Key Features
Full Gigabit Ports: 8 x 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
Multiple Installation Operation: Steel housing, desktop or wall-mounting design
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
Power Saving: Green Ethernet technology saves power
More Efficient Transmission Longer Usage Life
8-Port Gigabit Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS108GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
Transfer Method
Store and Forward
Hardware
Dimensions (W X D X H)
6.2 x 3.9 x 1.0 in
Interfaces
8 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
Buffer Capacity
4 Mbit
Jumbo Frame
15 KB
LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Others
Package Contents
8-Port Gigabit Desktop Switch (MS108GS)
Power Adapter
Quick Installation Guide
