Description

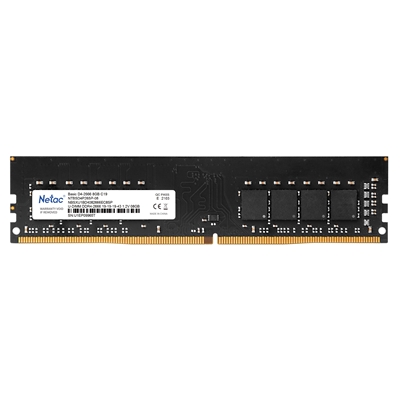

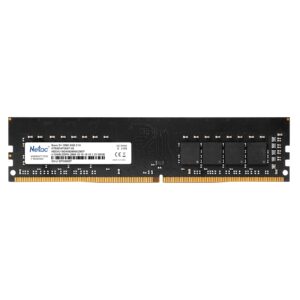

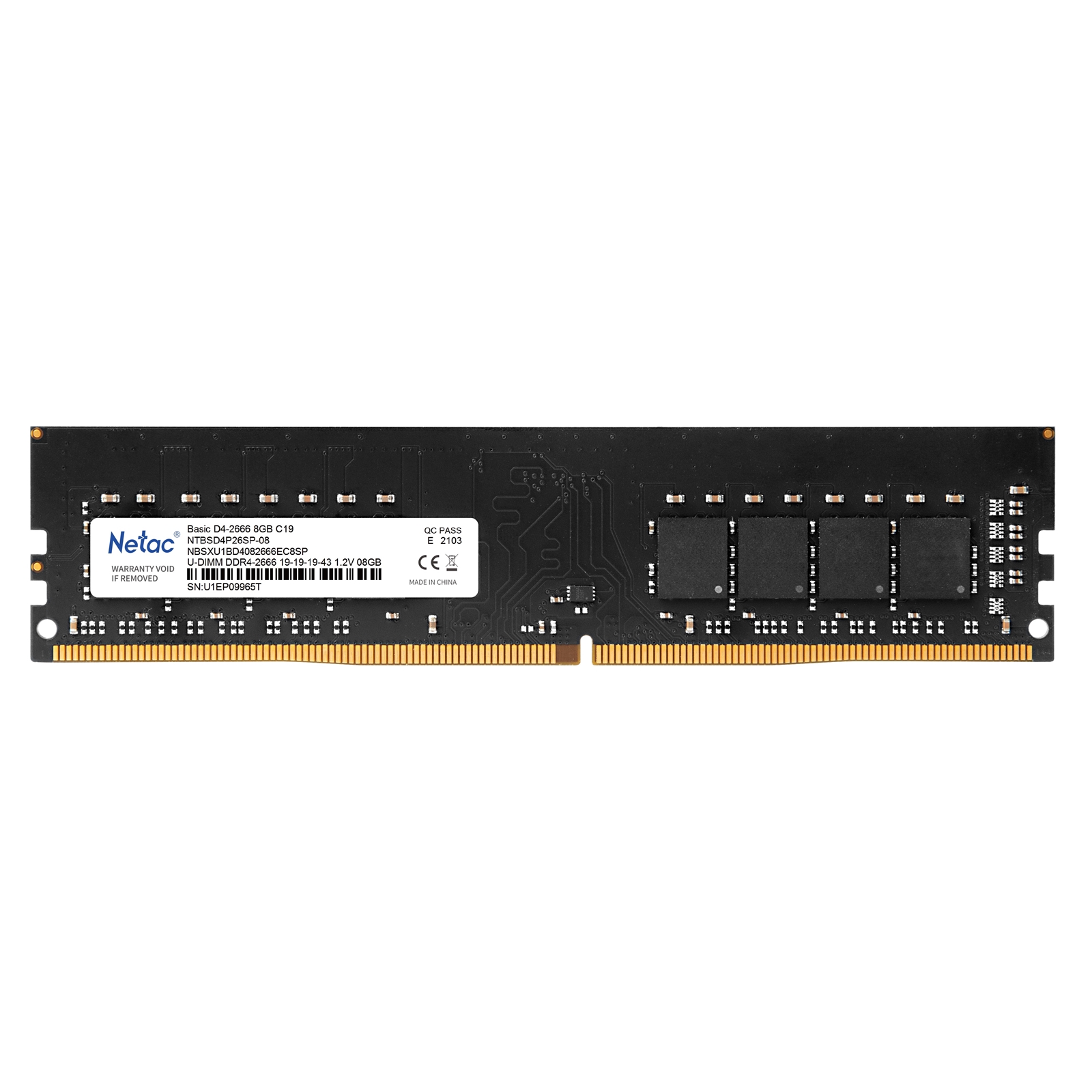

8GB (1 x 8GB) DDR4 2666MHz DIMM System Memory
NTBSD4P26SP-08 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8)DDR4-2666 CL19 SDRAM (Synchronous DRAM), memory module,based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Memory Capacity
8GB (1 x 8GB)

Memory Type
DDR4

Module Type
DIMM

Memory Speed
DDR4-2666MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
19-19-19-43

Heat Sink
/

Working Voltage
1.2v
