Description

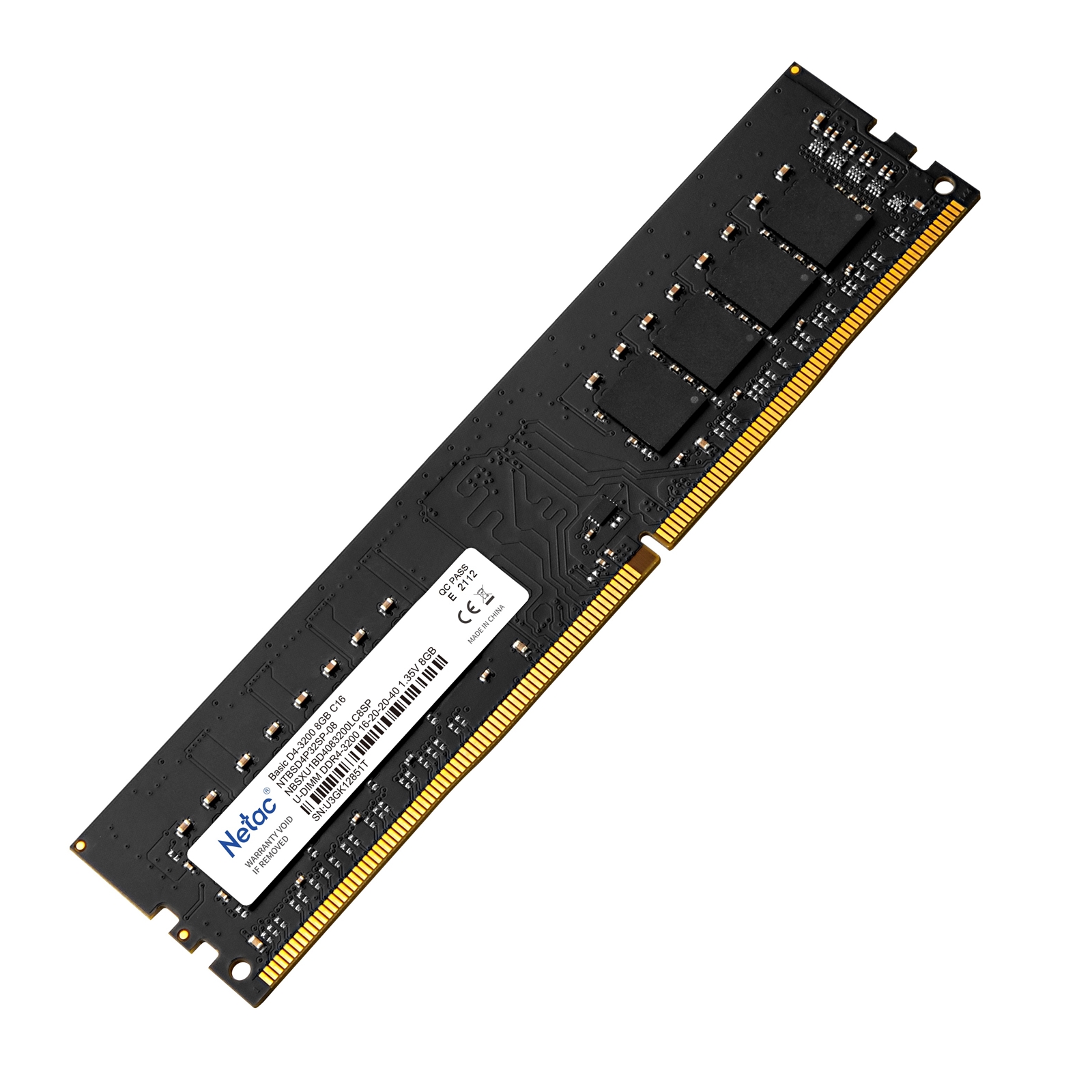

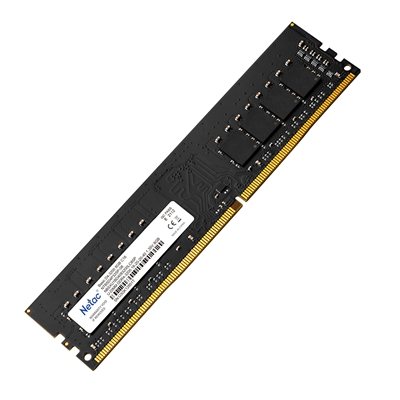

Netac 8GB No Heatsink (1 x 8GB) DDR4 3200MHz DIMM System Memory
NTBSD4P32SP-08 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8) SDRAM (Synchronous DRAM), memory module based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to latency timing of 16-20-20 at 1.35V. support XMP, Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Memory Capacity
8GB (1 x 8GB)

Memory Type
DDR4

Module Type
DIMM

Memory Speed
DDR4-3200MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
16-20-20-40

Heat Sink
/

Working Voltage
1.35v
