Description

Go big, do more

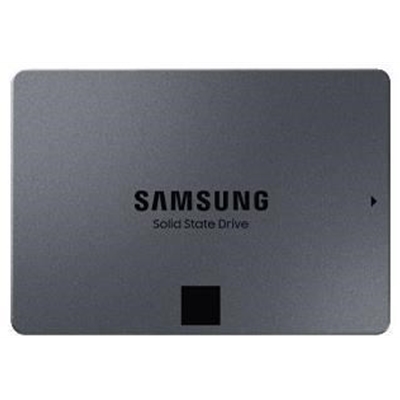

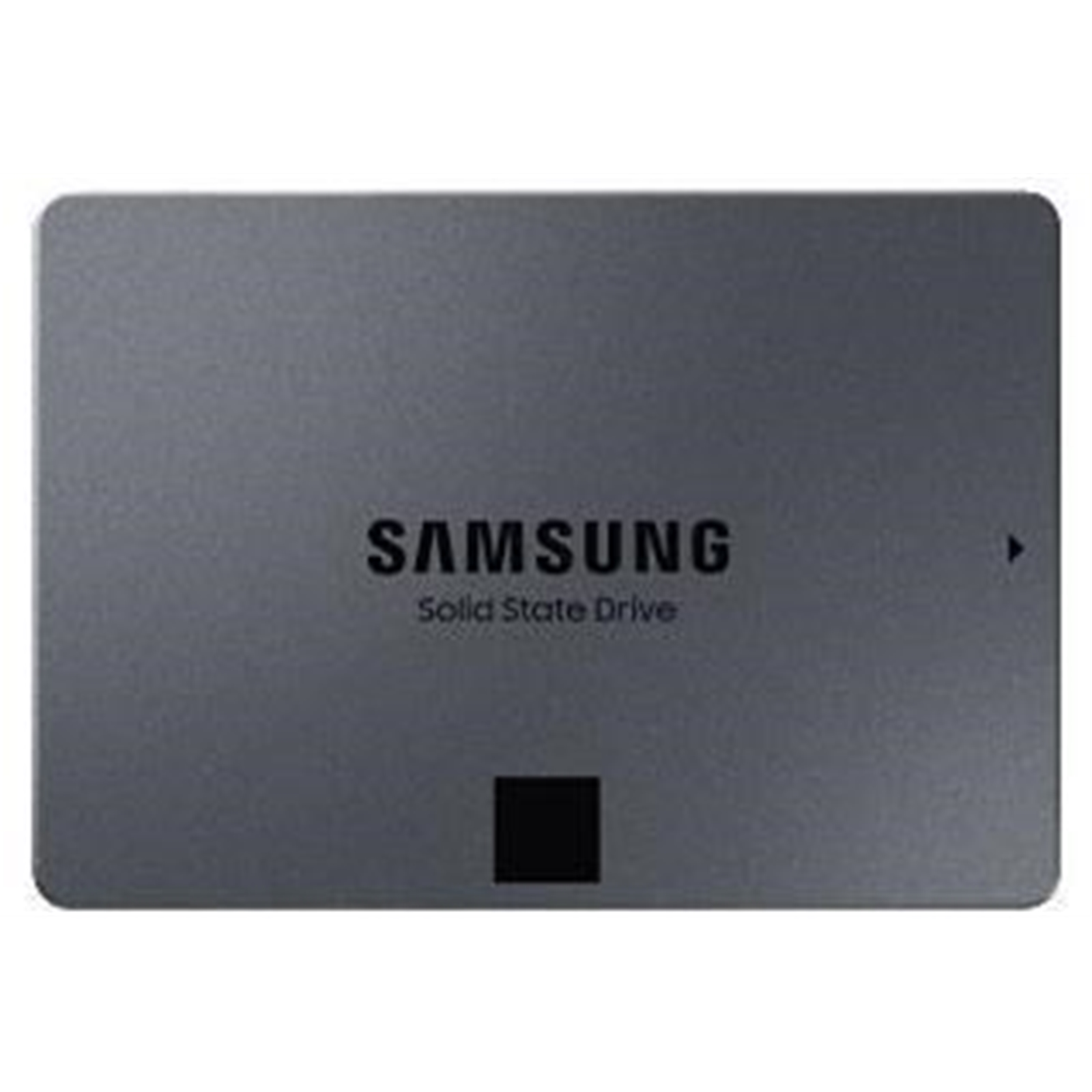

The 870 QVO is Samsung’s latest 2nd generation QLC SSD and the largest of its kind that provides up to 8TB of storage. It offers an incredible upgrade for everyday PC users who want to ramp-up their desktop PC or laptop to the largest available storage on the market without compromising on performance.

Enhanced in every way
Achieving the maximum SATA interface limit of 560/530 MB/s sequential speeds, the 870 QVO features improved random speed and sustained performance compared to the previous 860 QVO. Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

Enjoy max capacity
The 870 QVO is available in 1, 2, 4 and 8TB, and the 8TB model is by far the largest client SATA SSD. With the 870 QVO, users can now enjoy and thrive in the largest SSD computing environment ever.

Reliable and sustainable
The groundbreaking capacity of the 870 QVO doubles its reliability up to 2,880 TBW compared to the previous model 860 QVO and is backed by a limited warranty of 3 years. This formidable SSD provides further reliability with a refined ECC algorithm that enables a stable performance.

Upgrade with ease
Upgrading to the 870 QVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this terabyte SSD is as convenient as plugging in the 870 QVO into a SATA slot and letting the renewed migration software take care of the rest.

Samsung Magician software
Make your drive work like magic. The new and improved Samsung Magician 6.1 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive’s health and status or even enhance its performance.

Specifications

Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Sequential Read
Up to 560 MB/s

Sequential Write
Up to 530 MB/s

Storage Memory
Samsung V-NAND 4bit MLC

Form Factor
2.5 inch

Dimension (WxHxD)
100 X 69.85 X 6.8 (mm)

TRIM Support
TRIM Supported

S.M.A.R.T Support
S.M.A.R.T Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support
World Wide Name supported

Random Read (4 KB, QD32)
Up to 98,000 IOPS Random Read

Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write

Average Power Consumption (system level)
Average: 3.3 W *Maximum: 5.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage
5V ± 5% Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 – 70 ? Operating Temperature
