Description

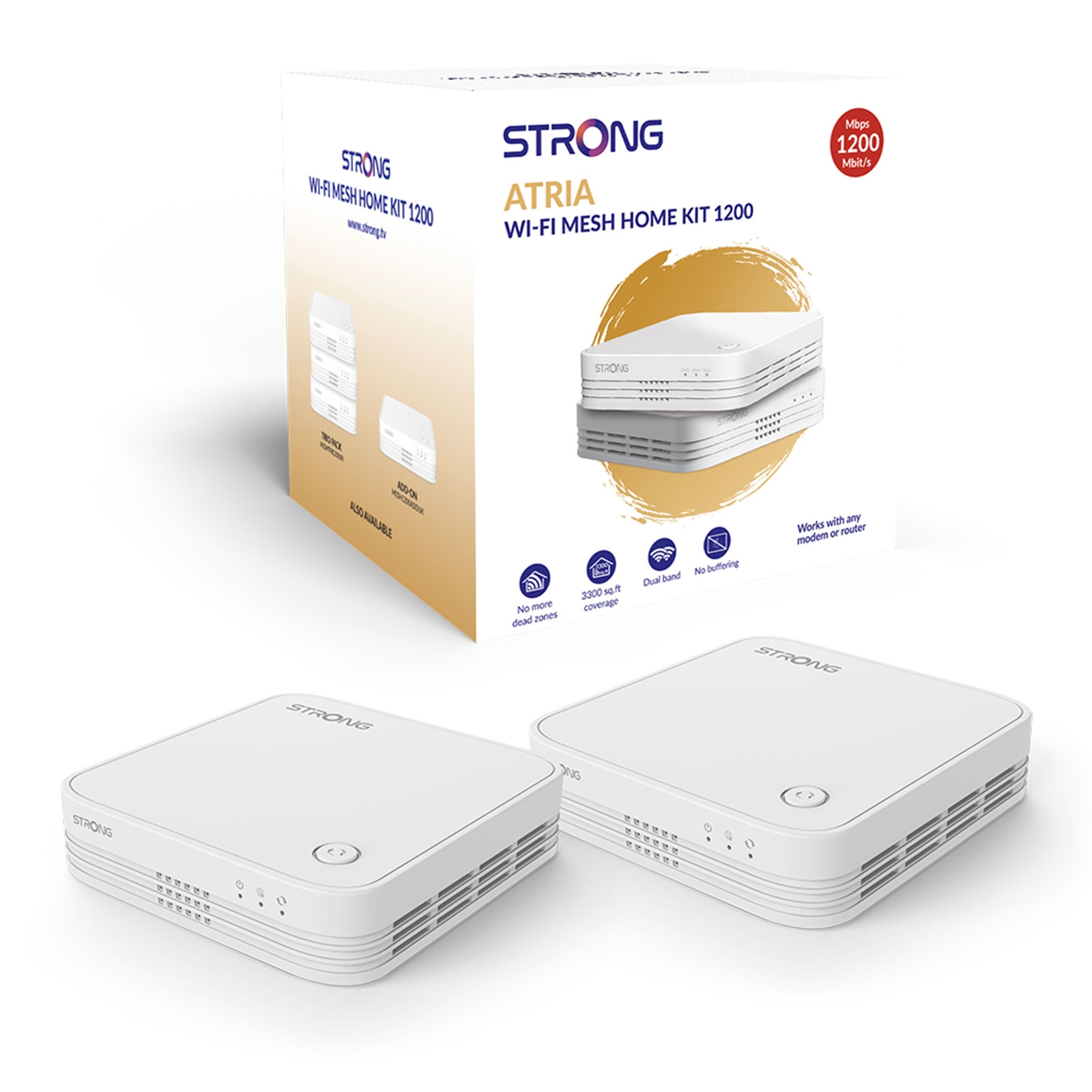

Using state-of-the-art Easy Mesh solution, STRONG’s Wi-Fi Mesh Home Kit 1200 combines Mesh technology with the powerful 802.11ac MU-MIMO Wi-Fi standard for ultimate speed and coverage at home. This package of 2 ATRIA Mesh Extender 1200 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 1200 Mbps with coverage up to 200 m².

Depending on the size of your house, you can add up to 4x additional ATRIA Mesh Extender 1200 (up to 6x ATRIA Mesh Extender 1200 cover an area of up to 600 m²). Manage your Wi-Fi Mesh network at a finger touch with the ATRIA App available for Android and iOS devices.

Technical specifications

WI-FI

Frequency
2.4 GHz and 5 GHz concurrent

Standards
IEEE 802.11ac/n/g/b/a, IEEE 802.11d,
IEEE 802.11h, IEEE 802.11e, IEEE 802.11i

Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Security
WPA™/WPA-PSK™ & WPA2™/WPA2-PSK™

Antenna
4x internal antennas (3 dBi)

Transmit Power
Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz) Supported Channels
5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100,104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

HARDWARE

Ethernet Ports
3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX)

Button
Connect & Secure (WPS), Reset

LEDs
Power, WAN, Pairing

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Power
External power supply, 12 V/1 A DC

Main Chipset
RTL8197FS

Wi-Fi Chipset
RTL8812FR for 5GHz

SOFTWARE

Management
Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log

Internet Protocol
IPv4/V6

STRONG Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network

Basic Network
DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS, WPS, WMM

OTHER SPECIFICATIONS

Certification
CE

Package contents
2x Mesh Extender 1200
2x Power Supply Units (12 V/1 A DC)
1x CAT5E Ethernet Cable
1x Installation Instructions, Warranty Card

System requirements
Internet Browser

Power consumption per unit
< 8 W INTERNET SERVICES

Easy MESH Support
Automatically Organized Network
Auto ConfigurationSeamless Roaming
Auto MESH Routing
Auto Healing (Redundancy and Fail-over)
Intelligent roaming (Dynamic management of clients and clients frequency bands)
Multiple access

ENVIRONMENT

Operating Temperature
0 °C~+45 °C

Storage temperature
-20 °C~+70 °C

Operating humidity
10%~95% non-condensing

Storage humidity
10%~95% non-condensing

Dimensions (WxDxH) per unit
13013030 mm

Weight per unit
~220 g
