Description

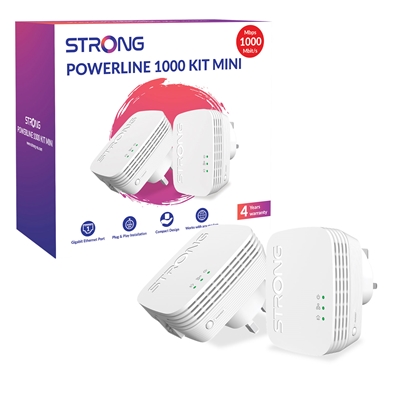

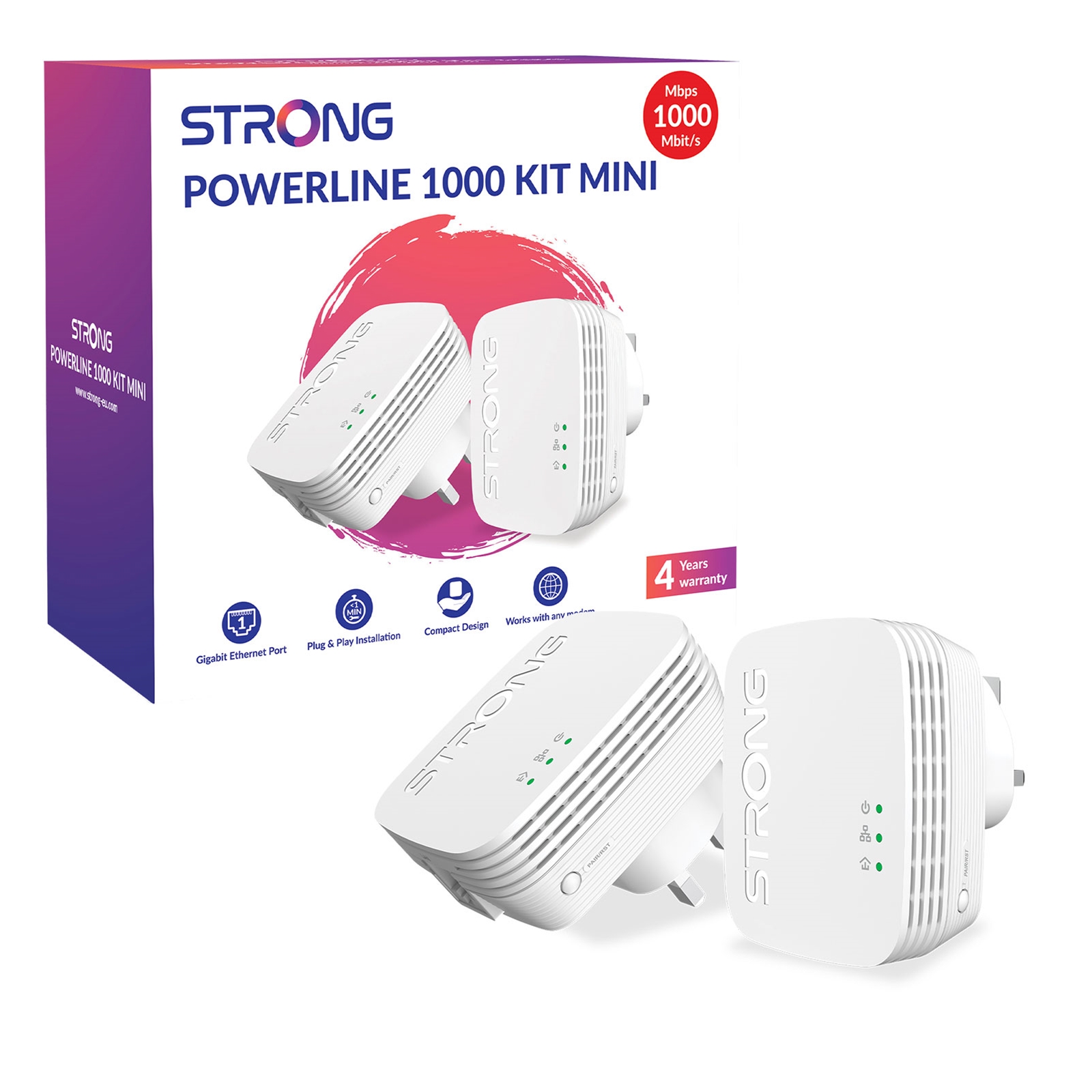

The Powerline 1000 Kit Mini which includes 2 Powerline 1000 mini adapters creates in an extremely simple way a high-speed home network using your home’s existing electrical wiring at speeds up to 1000 Mbit/s. No new wire required! Connect computers, consumer electronic and network-compatible devices to the Internet in any room and any floor of your home by simply using a power outlet. You just have to connect one Powerline 1000 Mini adapter to your internet modem via an Ethernet port and your Internet connection becomes immediately available from any power socket by using the second Powerline 1000 Mini adapter in the room of your choice.

Technical specifications

HARDWARE
Standards
HomePlug™ AV/ HomePlug™ AV2, IEEE 802.3, IEEE 802.3u
Ethernet Ports
1x Ethernet port (10/100/1000 mbps)
Buttons
Connect & Secure/Reset
LEDs
Power, Powerline, Ethernet
Security
128 bit AES
Range
Up to 300 meters over electric circuit
Frequency
1.8 MHz ~ 68 MHz
Size in mm (WxDxH)
63 x 68 x 75 mm
Weight in kg
0,079
HARDWARE
Power
100 – 240 V, 50/60 Hz
OTHERS
Certification
CE
Package contents
2x Powerline 1000 Mini Adapters
2x Ethernet Cables
Quick Installation Guide
Warranty Card
System requirements
RJ45 Ethernet connection
Environment
Operating Temperature: 0 °C ~ +40 °C
Storage Temperature: -40 °C ~ +70 °C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
