Description

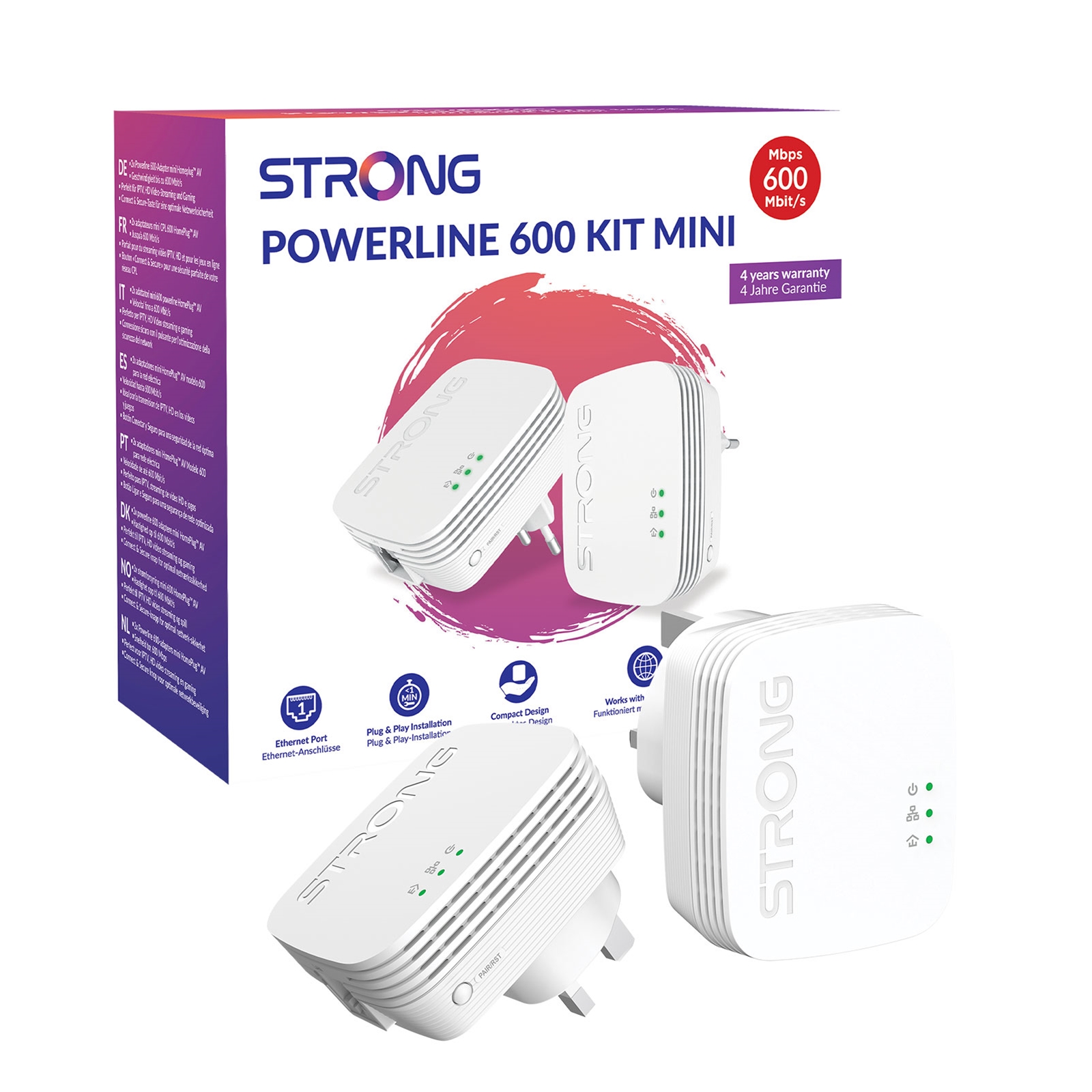

This version mini of Powerline 600 will provide you in an extremely simple way a high-speed home network. The powerlines are using your home’s existing electrical wiring at speeds up to 600 Mbit/s. This kit includes 2 adapters. No new wire required! Connect computers, consumer electronics, and network-compatible devices to the Internet in any room and any floor of your home by simply using a power outlet. You just have to connect one Powerline 600 Mini adapter to your internet modem via an Ethernet port and your Internet connection becomes immediately available from any power socket by using the second Powerline 600 Mini adapter in the room of your choice.

Technical specifications

HARDWARE

Standards
HomePlug AV™, IEEE802.3, IEEE802.3u

Ethernet Ports
1x Ethernet port (10/100 Mbits/s)

Buttons
Connect & Secure/Reset

LEDs
Power, Powerline, Ethernet

Security
128 bit AES

Range
Up to 300 meters over electric circuit

Frequency
2 MHz ~ 68 MHz

Size in mm (WxDxH)
63 x 68 x 75 mm

Weight in kg
0.079

OTHERS

Certification
CE

Package contents
2x Powerline 600 Adapters Mini
2x Ethernet Cables
Quick Installation Guide
Warranty Card

System requirements
RJ45 Ethernet connection

Environment

Operating Temperature: 0 °C ~ +40 °C
Storage Temperature: -40 °C ~ +70 °C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

GENERAL DATA

Power Supply
100 ~ 240 V AC, 50/60 Hz
