Description

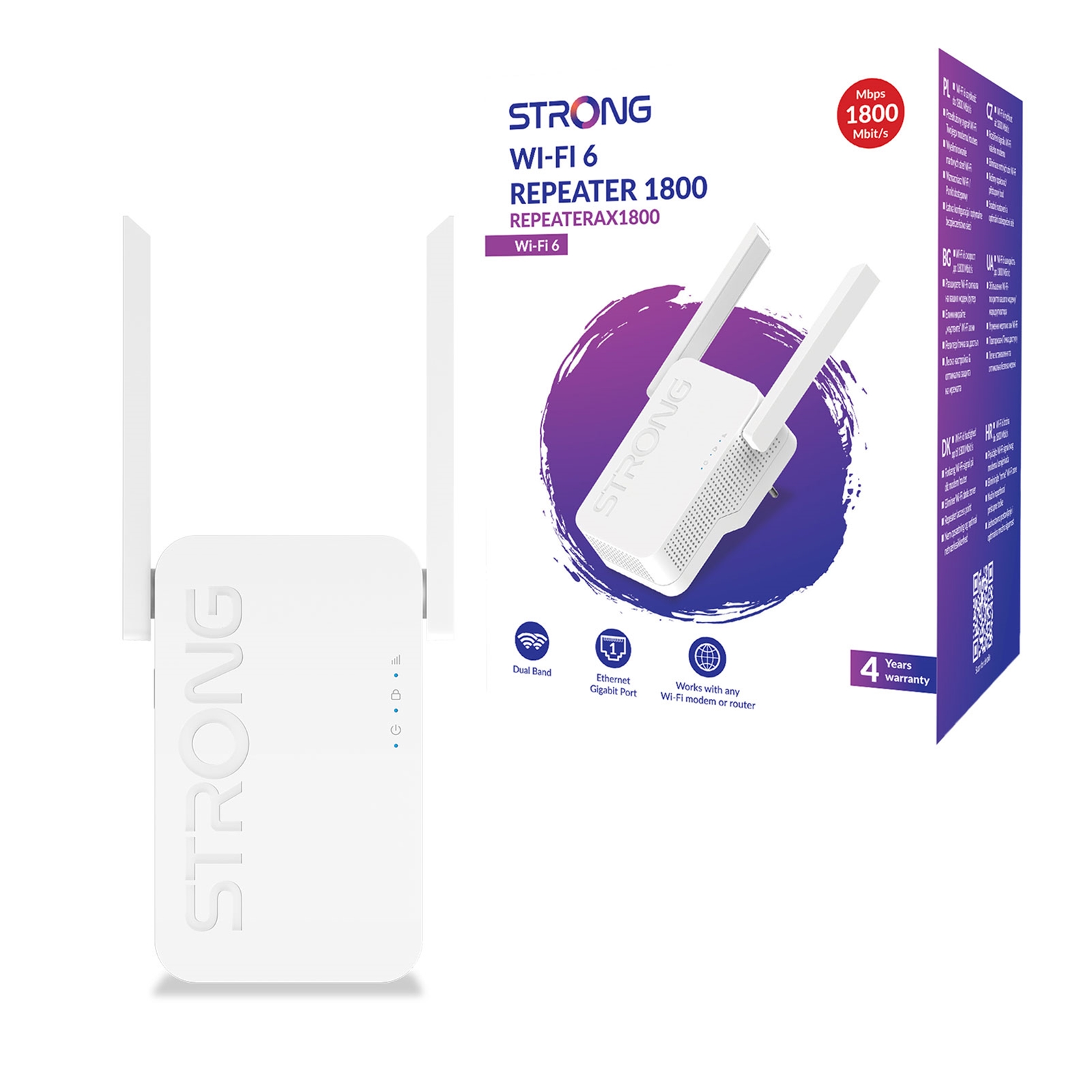

With the Wi-Fi 6, it is the perfect solution to extend the coverage of your modem or router in just minutes. At a maximum speed of 1800 Mbit/s, the REPEATERAX 1800UK is a compact wall plug solution designed for an extremely convenient placement. The system of 2 adjustable external antennas combined with a smart LED System for an optimum positioning of the repeater will boost a wide and reliable Wi-Fi coverage throughout your home.
The Wi-Fi 6 REPEATERAX 1800UK can also be configured as an outstanding 802.11ax Wi-Fi 6 Access Point to immediately improve the Wi-Fi of your existing single-band modem without exchanging it for a new one. Enjoy maximum security with WPA2 and the latest WPA3 wireless security protocols.
Technical specifications
WI-FI
Frequency: 2.4 GHz & 5GHz (11ax)
Standards: IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11a / IEEE 802.11b
Signal Rate:
– 5GHz: Up to 1201 Mbps
– 2.4GHz: Up to 574 Mbps
Security: WPA-PSK / WPA2-PSK / WPA3
Antenna: 2x 5dBi
Transmit Power: CE: <20dBm(2.4 GHz), <23dBm (5.15 GHz~5.25 GHz)
Supported Channels:
– 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
– 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
HARDWARE
Ethernet Ports: 1x 10/100/1000 Mbps self-adaptive LAN
Buttons: Reset Button / WPS Button
LEDs: WiFi / WPS / Power
Power: Direct plug-in power supply (100V-240V)
SOFTWARE
Configuration Wizards: Repeater, Access Point
DHCP: Auto, Server, Client
Management: Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade
Internet Protocol: IPv4
OTHER SPECIFICATIONS
Certification: CE
Package Contents: REPEATERAX1800, Installation instructions, Warranty Card
System Requirements: Windows 7, 8, 8.1, 10, Mac OS X, Linux, Internet Browser
Environment
– Operating temperature: 0° C ~ +40° C
– Storage temperature: -40° C ~ +70° C
– Operating humidity: 10%~90% non-condensing
– Storage humidity: 5%~90% non-condensing
Dimensions:
– Size (W x D x H): 77.8 x 49 x 130 mm
– Size with antenna (W x D x H): 77.8 x 49 x 222.8 mm
Weight: 0.29 kg
