Description

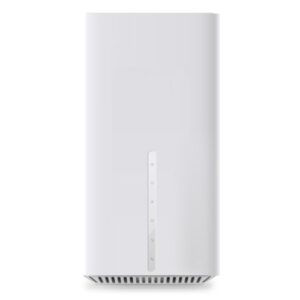

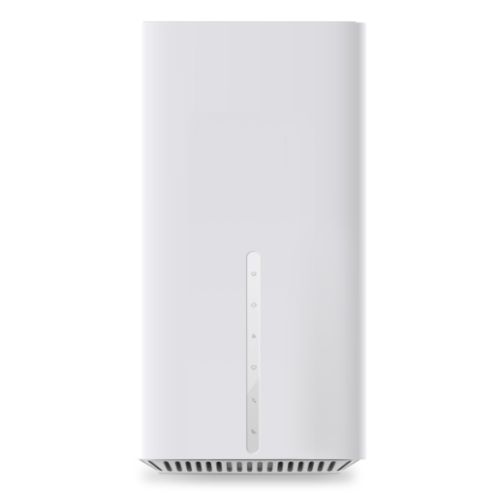

AX3000 Dual Band Wi-Fi 6 VoIP Router
- Dual-Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Boosted Coverage: High-performance internal antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
- More Efficient Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
- EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
- Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
- Gigabit Wired Connections: 1× gigabit WAN port and 3× gigabit LAN ports provide fast and flexible internet access.
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
- Remote Management: TAUC (TP-Link Aginet Unified Cloud), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported.
Dual-Band WiFi 6 Up to 3.0 Gbps
Wi-Fi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K/8K streaming, online gaming, and fast downloading.
More Connections at High Speed
Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.**
- OFDMA – OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
- MU-MIMO – Simultaneously transfers data to multiple devices for 2× faster performance.
Extensive WiFi Coverage
Beamforming Technology
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.
3T3R Antenna
Engineered with a 3T3R (3 transmitters + 3 receivers) antenna architecture, EX530v delivers stronger signals and higher throughput on the 5 GHz band with high sensitivity.
Create Smart Mesh WiFi with Greater Flexibility
Create a unified mesh WiFi network with other EasyMesh-compatible router or mesh AP for seamless whole home coverage.
Gigabit Wired Connections and More
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for reliable wired connections. The USB 3.0 port can be used to share files, music, and videos within your network at high speeds, up to 10× faster than USB 2.0.
Convenient VoIP Calls over the Internet
EX530v also integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.
Robust Network Protection
- WPA3 Security – Higher password safety and enhanced protection against brute-force attacks**
- Parental Controls – Block inappropriate content and restrict time spent online
- Multi-SSID – Create separate networks for visitors and keep your main network secureEasy to Set Up and Use
You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution: End-to-End Management Platform for ISPs
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
Description
Specification
- Type: VoIP Router
- Connectivity: Wireless
- Wi-Fi Rating: AX3000
- Max Single Band Wi-Fi Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Bands: Dual Band
- Signal Rate: 5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps - Interface(s): 1 x 10/100/1000 Mbps RJ45 WAN
3 x 10/100/1000 Mbps RJ45 LAN
1 x Phone Port
1 x USB 3.0 - Standards: IEEE 802.11 ax/ac/n/a 5 GHz
IEEE 802.11 ax/b/g/n 2.4 GHz - Frequency: 2.4 GHz and 5 GHz
- Button(s): “Power On/Off Button, Reset Button, WPS/Wi-Fi Button”
- Power Supply: External Power Supply: 12V/2.0A
- Antenna(s): Internal Antennas
- Dimensions: 99 x 99 x 190 mm
- Wireless Functions: “Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering”
- Security: Wireless Security: WPA/WPA2/WPA3 Encryptions
IPv4/IPv6 SPI Firewall
DDoS
Service Filtering
Access Control
IP&MAC Binding - DHCP: “DHCP Client, DHCP Server, DHCP Relay, Address Reservation, Condition Pool”
- Port/NAT Forwarding: “Virtual Server, Port Triggering, DMZ, ALG, UPnP”
- VPN Support: “PPTP, IPSec, OpenVPN”
- Management: “Local management:
WebGUI, Aginet app (for end users)Remote management:
Aginet ACS, TR-069, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet App for end user (need to log in with TP-Link ID and bind your device to it)Cloud management:
TP-Link Aginet Unified Cloud (TAUC)” - Dynamic DNS: “NO-IP, DynDNS”
- USB Application: “Samba, FTP, Media Server”
- Additional Features: “VoIP, Parental Controls, Firewall, Address Reservation, QoS (Quality of Service), CWMP, Network Diagnosis, Traffic Statistics,1024-QAM, MU-MIMO, OFDMA, Cloud upgrade”
- Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
Storage Temperature: -40°C–60°C (-40°F –140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing - Package Contents: 1 x Wi-Fi 6 VoIP Router EX530v
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x RJ11 Cable
1 x Quick Installation Guide - Package Type: Retail
- Package Weight: 1.0600 kg
- Warranty: 3 Years
- #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
- #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
