Description

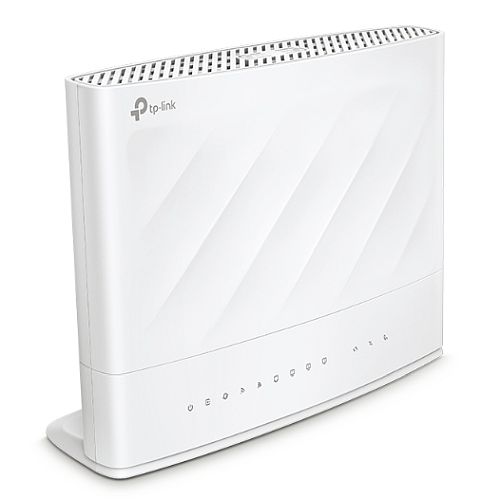

AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

• Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds of 1.8 Gbps.(1201 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).
• Connect More Devices: WiFi 6 technology let you connect more devices with revolutionary combination of OFDMA, MU-MIMO, and Beamforming technologies while simultaneously reducing lag.
• Super VDSL: The latest super VDSL (VDSL2 Profile 35b) technology delivers internet speeds of up to 350 Mbps, while G.vector technology ensures advanced data transmission stability.
• Versatile Connectivity: Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
• EasyMesh Compatible: Provides whole-of-home WiFi coverage with standard mesh technology.
• VoIP Support: Support multiple VoIP accounts and various call features to surpass traditional landlines.
• Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
• Remote Management: Support TR-069/TR-098, TR-181, TR-111, TR-104, TR-143, and TAUC for centralized management by Internet Service Providers.

Description

Specification

• Type: VDSL2/ADSL2 Router
• Connectivity: Wireless
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: 1201 Mbps
  2.4 GHz: 574 Mbps
• Interface(s): 3 x 10/100/1000 Mbps RJ45 LAN
  1 x 10/100/1000Mbps RJ45 WAN
  1 x DSL Port
  1 x FXS Port
  1 x USB 2.0
• Standards: “IEEE 802.3, IEEE 802.3u, 802.3ab”
• Frequency: 2.4 GHz and 5 GHz
• Button(s): “Power On/Off Button, Reset Button, WPS On/Off Button, Wi-Fi On/Off Button”
• Power Supply: 12V/2.0A
• Dimensions: 199.7 x 148.6 x 67.5 mm
• Wireless Functions: “Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering”
• Security: “Wireless Security:
  WPA/WPA2/WPA3 encryptions

  Software Security:
  IPv4/IPv6 SPI Firewall, DDoS, Service Filtering, Access Control,
  IP&MAC Binding”

• DHCP: “Server, Client, DHCP Client List, Address Reservation, DHCP Relay, Condition Poo”
• Port/NAT Forwarding: “Virtual Server, Port Triggering, DMZ, ALG, UPnP
  NAT Forwarding”
• VPN Support: “IPSec VPN:
  Support up to 16 IPSec VPN tunnels

  VPN:
  OpenVPN, PPTP VPN, IPSec VPN”

• Management: “Local management: WebGUI management, Aginet app management
  Remote management: TR-069, TR-098, TR-181, TR-369, TR-111,TR-143
  Cloud management: TP-Link Aginet Unified Cloud (TAUC)”
• Dynamic DNS: “Dyn DNS, NO-IP, TP-Link DNS”
• USB Application: “Support Samba (Storage) / FTP Server / Media Server, 3G/4G Modem”
• Additional Features: “NAT Forwarding, Address Reservation, QoS(Quality of Service),
  CWMP, Network Diagnosis, Traffic Statistic, Cloud upgrade,
  1024-QAM, MU-MIMO, OFDMA, EasyMesh”
• Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
  Storage Temperature: -40°C–60°C (-40°F –140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: Modem Router VX230v
  RJ45 Ethernet Cable
  Power Adapter
  RJ11 Cable
  Splitter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.0000 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
