Description

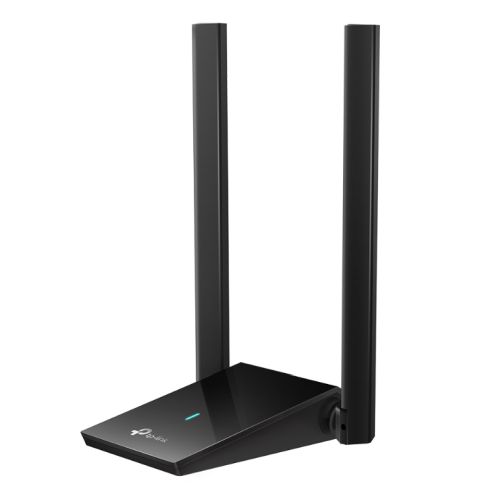

AX1800 Dual Antennas High Gain Wireless USB Adapter
- Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
- Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
- Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
- MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth
- OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks
- SuperSpeed USB 3.0 – Up to 10 x faster transfer speeds than USB 2.0
- Refined Security – Protect your personal data with the latest WPA3 encryption
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there's no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement
Find the best spot for network reception with TX20U Plus's desktop-friendly design and 1-meter USB cable.
Description
Specification
- Interface: USB 3.0
- Max Single Band Wi-Fi Rate: 1201 Mbps
- Bands: Dual Band
- Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
- #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
- External Antenna: Yes
- Antenna Type: 2 x High-Gain Dual-Band Antennas
- Frequency / Signal Rate: 5GHz: up to 1201 Mbps
2.4GHz: up to 574 Mbps - LED: Status
- EIRP: 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) - Dimensions: 84 x 156.3 x 19.2 mm
- Wireless Modes: Infrastructure mode
- Security: “WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK”
- Advanced Functions: See Overview
- Environment (°C): Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: AX1800 Wireless USB Adapter
Quick Installation Guide
1-meter USB 3.0 Cable - Package Type: Retail
- Package Weight: 0.2400 kg
- Warranty: 3 Years
