Description

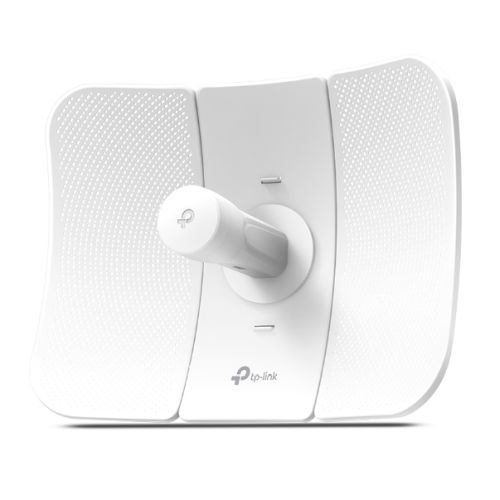

5GHz AC 867Mbps 23dBi Outdoor CPE
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method and allows professionals to access more detailed configurations.
Description
Specification
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
- Bands: Single Band
- Wi-Fi Rating: AC867
- Max Single Band Wi-Fi Rate: 867 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Interface(s): 1 x 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- Wireless Standards: IEEE 802.11a/n/ac
- Antenna(s): 23 dBi
Beamwidth: 9° (Azimuth)/7° (Elevation) - Protection: 15 KV ESD Protection
6 KV Lightning Protection - Button(s): Reset Button
- Power Supply: “Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC” - Dimensions: 85.8 x 43.9 x 29.7 mm
- Weatherproof: Yes (Weatherproof)
- Frequency: 5.15~5.85 GHz
- Security: “SPI Firewall/ Ping Forbidden/ DoS Protection
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,”
- Management: Discovery and Remote Management (Pharos app)
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server - Additional Features: See Overview
- Environment: Operating Temperature: -40C~70C (-40F~158F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing - Package Contents: Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide - Package Type: Retail
- Package Weight: 1.7300 kg
- Warranty: 2 Years
