Description

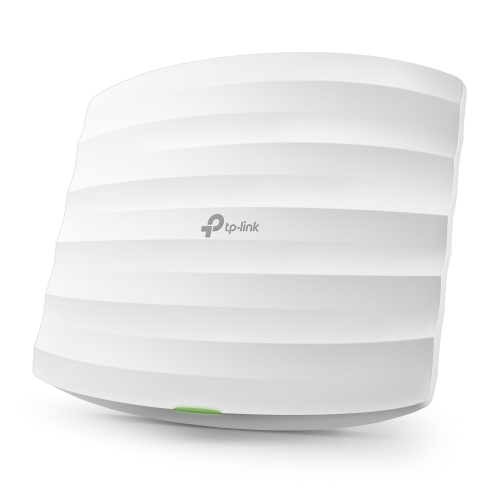

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Wireles Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Description
Specification
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
- Bands: Dual Band
- Wi-Fi Rating: AC1750
- Max Single Band Wi-Fi Rate: 1300 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Interface(s): 2 x Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE)
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Antenna(s): Internal Omni
2.4GHz: 3 x 3.5dBi
5GHz: 3 x 4dBi - Button(s): Reset
- Power Supply: “802.3af/at PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)” - Power Consumption: 12.3 W
- Dimensions: 205.5 x 181.5 x 37.1 mm
- Weatherproof: No
- Frequency: 5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps - Wireless Functions: See Overview
- Security: “Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK” - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD
Gigabit Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide - Package Type: Retail
- Package Weight: 1.0300 kg
- Warranty: Limited Lifetime
