Description

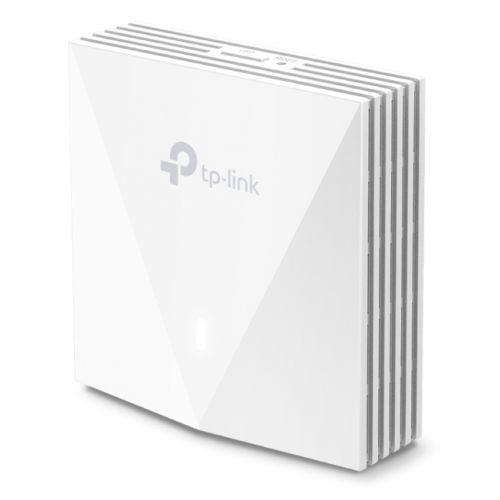

AX3000 Wall Plate WiFi 6 Access Point
- Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Gigabit Port: Connect wired devices with one downlink gigabit port.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
Dedicated Complete Private WiFi Network in Each Room
Hospitality – Room-by-room connection with elegant appearance
Dormitory – Stable wireless and wired connections
Apartment – Private and secure network access for every family
Villa – Whole-home WiFi coverage with seamless roaming
Meeting Room – Faster streaming, downloading, video conferencing, and everything to satisfy your needs
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.
Gigabit Ports to Bridge Network
The gigabit downlink port allows to connect wired device to the gigabit network.
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there's no need for more wiring. Plug it into the existing Ethernet cables, and you're ready.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Description
Specification
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
- Bands: Dual Band
- Max Wireless Transfer Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Interface(s): Uplink: 1 x10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port - Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Antenna(s): 2 x Dual-Band Antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 5 dBi - Button(s): “Reset, LED”
- Power Supply: 802.3af/at PoE
- Power Consumption: 11.5 W
- Dimensions: 86 x 86 x 42.6 mm
- Weatherproof: No
- Frequency: 2.4 GHz and 5 GHz
- EIRP: “<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)" - Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust on dBm)
QoS(WMM)
Seamless Roaming§
Beamforming
Rate Limit
Load Balance
Airtime Fairness - .: Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP - Wireless Security: “Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3 Personal/Enterprise” - Quality of Service: QoS(WMM)
- Management: Omada App
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning - Advanced Functions: See Overview
- Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
Installation Guide
Mounting Kits - Package Type: Retail
- Package Weight: 0.3240 kg
- Warranty: Limited Lifetime
