Description
Omada VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1x WAN and 1x WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
What This Product Does

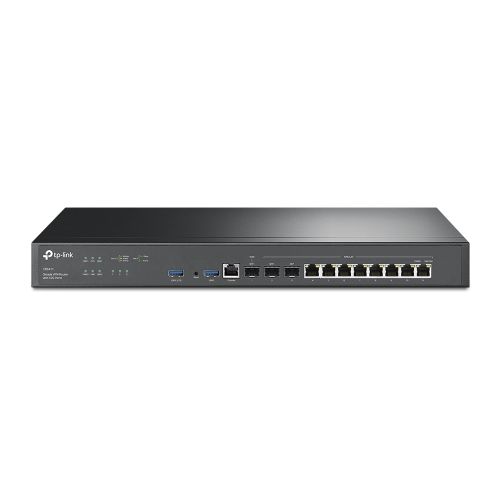

The ER8411 Omada 10G Multi-WAN Security Gateway from TP-Link boasts excellent data processing capabilities and an array of powerful functions, including SSL/ IPSec / PPTP / L2TP VPN & OpenVPN, Load Balance, Access Control, DoS Defense, and Bandwidth Control. Two 10GE SFP+ ports and up to 10 WAN ports allow for high-bandwidth aggregation connectivity and multi-line broadband. As a router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 provides for remote and centralized management anywhere, anytime.
Integration into Omada SDN for Centralized Management
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 allows for remote and centralized management anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. View network topology and configuration, real-time switch statistics, and debugging metrics from a single easy-to-use interface.
High-Capacity Performance
Featuring two 10G SFP+ ports (1 WAN, 1 WAN/LAN), the Security Gateway ER8411 supports high-bandwidth aggregation connectivity for enterprise-level businesses, schools, hotels, and large-scale deployments.
Intelligent Bandwidth Allocation
The ER8411 features 1x 10GE SFP+ WAN port, 1x 10GE SFP+ WAN/LAN port, 1x 1GE SFP WAN/LAN ports, and 8x 1GE RJ45 WAN/LAN ports, raising the utilization rate of multi-line broadband. Intelligent Load Balance distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based Bandwidth Control and Session Limit functions give network administrators the power to manage how their bandwidth is used flexibly.
Enterprise-Standard VPN
The ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPsec, PPTP, and L2TP in Client/Server mode. It also features built-in VPN engine hardware, allowing the router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, and Main/Aggressive negotiation modes.
Abundant Security Features
- Powerful Firewall: Advanced firewall policies protect your network and data
- Convenient VLAN Support: Create virtual network segments for enhanced security and simplified network management.
- DoS Defense: Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- IP/MAC/URL Filtering: Forcefully prevent viruses and attacks from intruders.
- IP-MAC Binding: Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
- One-Click ALG Activation: One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.
Description
Specification
- Type: VPN Router
- Connectivity: Wired
- Max Wired Transfer Rate: 10 Gbps
- Interface(s): “2 x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
1 x 1GE SFP WAN/LAN Ports
8 x 1GE RJ45 WAN/LAN Ports
1 x RJ45 Console Ports
2 x USB Ports (Connecting 4G/3G Modem as WAN Backup)” - IEEE Standards & Protocols: “IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP”
- Button(s): Reset Button
- Power Supply: “Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)”
- Dimensions: (WxDxH) 440 x 220 x 44 mm
- Security: “SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local ManagementFiltering
WEB Group Filtering§
URL FilteringWeb Security
ARP Inspection
Sending GARP Packets§
ARP Scanning
IP-MAC BindingAttack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WANAccess Control
Source/Destination IP Based Access Control” - DHCP: DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP
Multi-IP Interfaces - VPN Support: “Enterprise-Standard VPN
Pass-through traffic & Multiple VPN protocols
Including SSL, IPsec, PPTP, and L2TP in Client/Server modeBuilt-in VPN engine hardware
Allow router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connectionsAdvanced
DES/3DES/AES128/AES192/AES256 encryption
MD5/SHA1 authentication
Main/Aggressive negotiation modes” - Management: Omada App
Centralized Management
Cloud AccessMaintenance
Time Setting
Diagnostic
Firmware Upgrade
Factory Defaults/Reboot
Backup&Restore
System Log
Remote Management
Statistics
Controller Settings
SNMPManagement Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration - Dynamic DNS: “Dyndns, No-IP, Peanuthull, Comexe”
- USB Application: Connecting 4G/3G Modem as WAN Backup
- Additional Features: “ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection” - .: “NAT
One-to-One NAT§
Multi-Net NAT
Virtual Server
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnPSession Limit
IP-based Session Limit” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: Omada 10G Multi-WAN Security Gateway ER8411
Power Cord
Rack-Mount Kit
Quick Installation Guide - Package Type: Retail
- Package Weight: 4.3000 kg
- Warranty: Limited Lifetime
