Description

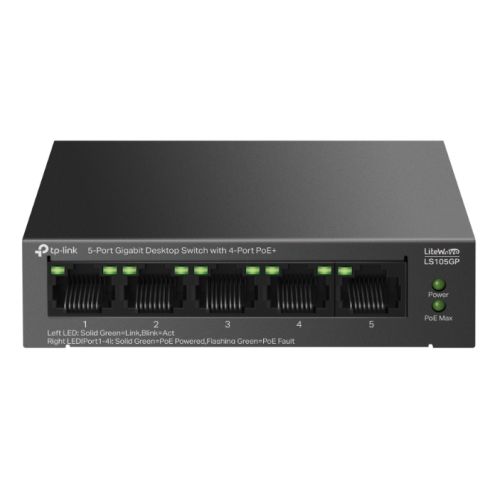

5-Port Gigabit Desktop Switch with 4-Port PoE+
- Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
- 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x10/100/1000Mbps RJ45
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4, up to 30 W PoE output per port
Power Supply: 65 W” - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: 99.8 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power & data transmission)
PoE Auto Recovery Button (Ports 1-4)
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: LS105GP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.7000 kg
- Warranty: 3 Years
- #Hide#POE: Yes
