Description

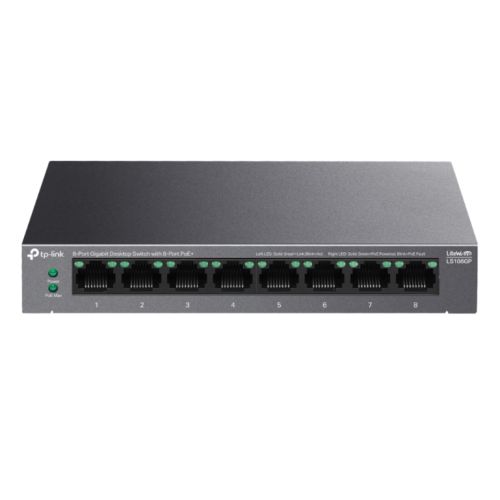

8-Port Gigabit Desktop Switch with 8-Port PoE+
- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Budget: 62 W” - Switching Capacity: 16 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: (WxDxH) 158 x 99 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power & data transmission)
PoE Auto Recovery Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: LS108GP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.8950 kg
- Warranty: 3 Years
- #Hide#POE: Yes
