Description
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play.
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB for flexible installation
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
Dedicated In Network Centralized Management

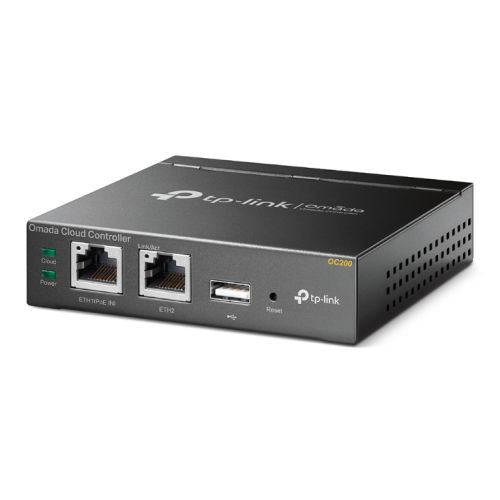

The OC200 Omada Cloud Controller is dedicated to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
- No PC/Server is needed
- Reliability and Security
- Cloud Access for ultra convenience
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
- Free Cloud Service with no license fees
- Convenient Management with remote access
- Multi-Site Management for large scale network
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
Description
Specification
- Interfaces: 2 x 10/100Mbps Ethernet Port
1 x USB 2.0 Port for configuration backup
1 x Micro USB Port for power - Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A)
- Power Consumption: 5 W
- Management Scale: 100 EAPs
- Wireless Functions: L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS - Wireless Security: WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption
Access Control
SSID to VLAN Mapping
Guest Network - Management: Support Omada EAP Series
Cloud Access
Omada App Support
Reboot& Wireless Schedule
Auto Backup & Restore
Batch Firmware Upgrade - Authentication: Captive Portal
- Certification: “CE, FCC, RoHS”
- Dimensions: 100 x 98 x 25 mm
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: Omada Cloud Controller OC200
Quick Installation Guide
Ethernet Cable - Package Weight: 0.4640 kg
- Warranty: Limited Lifetime
