Description
Blazing-Fast WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds.
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming
Video streams and voice calls are unaffected as users move between locations.
Omada Mesh
Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Specifications
HARDWARE FEATURES
Interface:
1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button:
Reset
Power Supply:
802.3at PoE
12 V / 1.5 A DC
Power Consumption:
EU: 18.1 W
Dimensions ( W x D x H ):
9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)
Antenna Type:
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 4x 5 dBi
Mounting:
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity:
250+
Wireless Standards:
IEEE 802.11ax/ac/n/g/b/a
Frequency:
2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions:
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT
Omada App:
Yes
Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access:
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts:
Yes
LED ON/OFF Control:
Yes
Management MAC Access Control:
Yes
SNMP:
v1, v2c, v3
System Logging:
Local/Remote Syslog
SSH:
Yes
Web-based Management:
HTTP/HTTPS
L3 Management:
Yes
Multi-site Management:
Yes
Management VLAN:
Yes
Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification:
CE, FCC, RoHS
Package Contents:

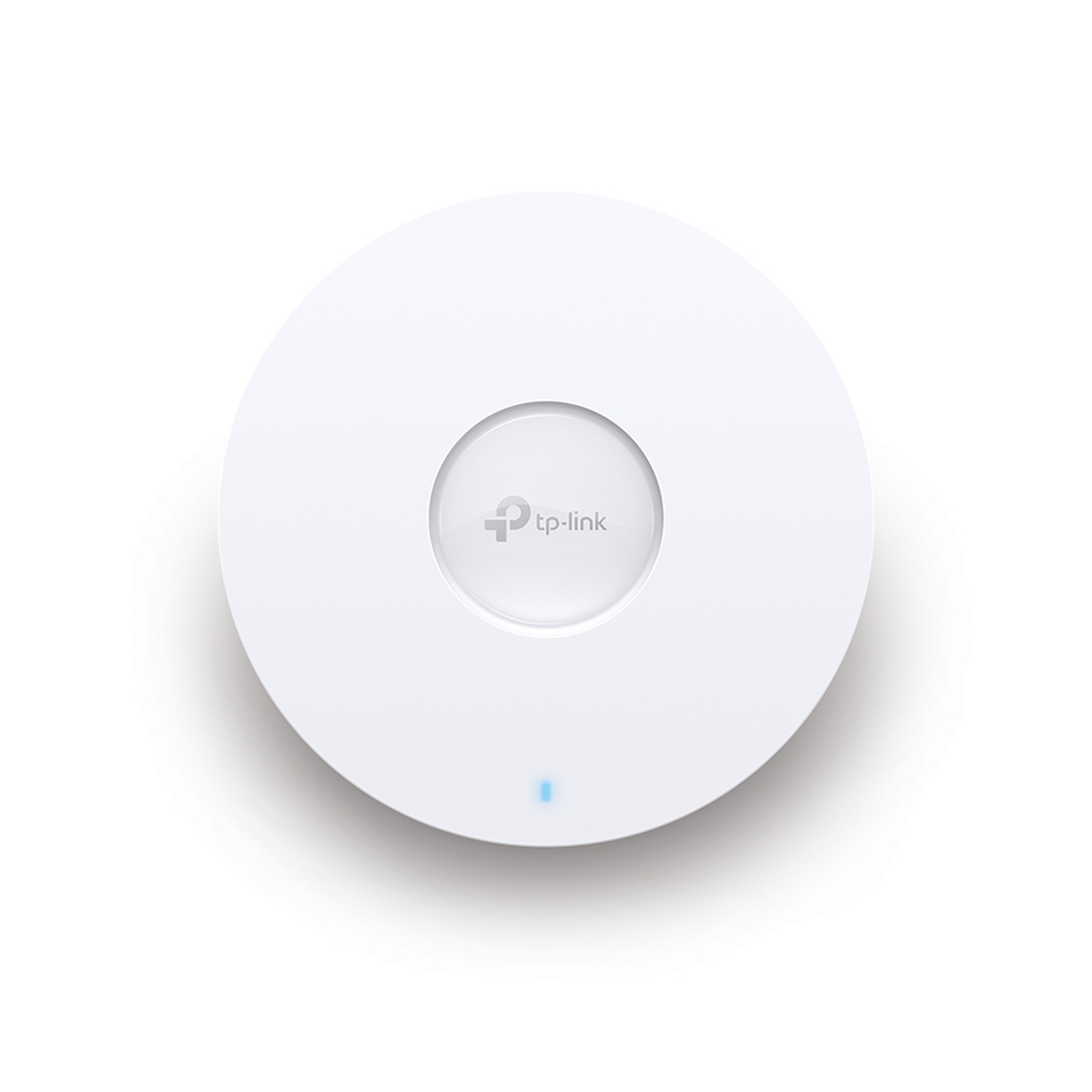

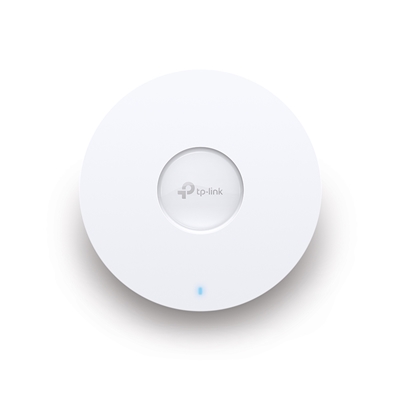

EAP670
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
