Description
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm
- Control, DHCP Snooping, 802.1X, and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image and Dual Configuration improves reliability and up-time of your network
Overview
TP-Link’s brand new JetStream Gigabit Smart Switches provide huge upgrade comparing with previous versions. New Web UI design features better operating experience. Integrated L2 features such as 802.1Q VLAN, QoS, IGMP Snooping provide cost-effective networking solutions for small andmedium-sized businesses without sacrificing enhanced usability and strong performance.
Abundant L2 Features
JetStream Smart Switches support a complete lineup of L2 features, including IGMP Snooping/ MLD Snooping, 802.1Q/ MAC/ Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group (LAG), Port Isolation, Port Mirroring, and CPU Mirroring. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restrict each subscriber on a certain level to prevent unauthorized multicast access
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the switches support, Voice Applications will perform better and smoother.
IPv6 Support
JetStream Smart Switches support comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping, all of these features help to ensure a smooth migration to IPv6-based network without changing switches in the future.
Enterprise Level Management Features
JetStream Smart Switches support multiple user-friendly standard management features such as intuitive web-based Graphical User Interface (GUI), industrially standard Command Line Interface (CLI) and SNMP (v1/2/3). These switches support RMON (Remote Network Monitoring), which enables the switch to be polled for valuable status information and send traps when encountering abnormal events. Also, this series of switches support Dual Image function, which makes there be less ‘down-time’ when switches are being upgraded/downgraded.
Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 x 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 x Combo Gigabit SFP Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
IEEE 802.1p” - Switching Capacity: 12.8 Gbps
- Power Supply: “100~240VAC, 50/60Hz”
- Dimensions: (W x D x H) 440 x 180 x 44 mm
- Mac Address Table: 8k
- Packet Forwarding Rate: 9.5Mpps
- Jumbo Frame: 9216 Bytes
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: “Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)L2 Multicast
512 IPv4, IPv6 shared multicast groups
IGMP Snooping
MLD Snooping
Multicast VLAN Registration
Multicast Filtering” - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Access Control: P/Port/MAC
- Security: AAA
802.1X
EAP-TLS/EAP-TTLS/EAP-PEAP
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management (HTTPS with SSLv3/TLS1.0)
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
CPU Monitoring
Cable Diagnostics
EEE
System Log

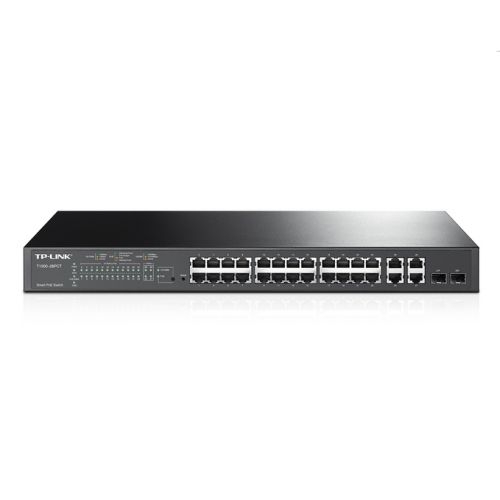

802.1ab LLDP/ LLDP-MED” - Package Contents: T1500-28PCT
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.1000 kg
- Warranty: Limited lifetime
- #Hide#POE: Yes
