Description

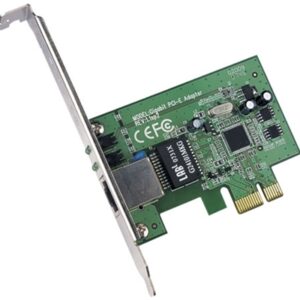

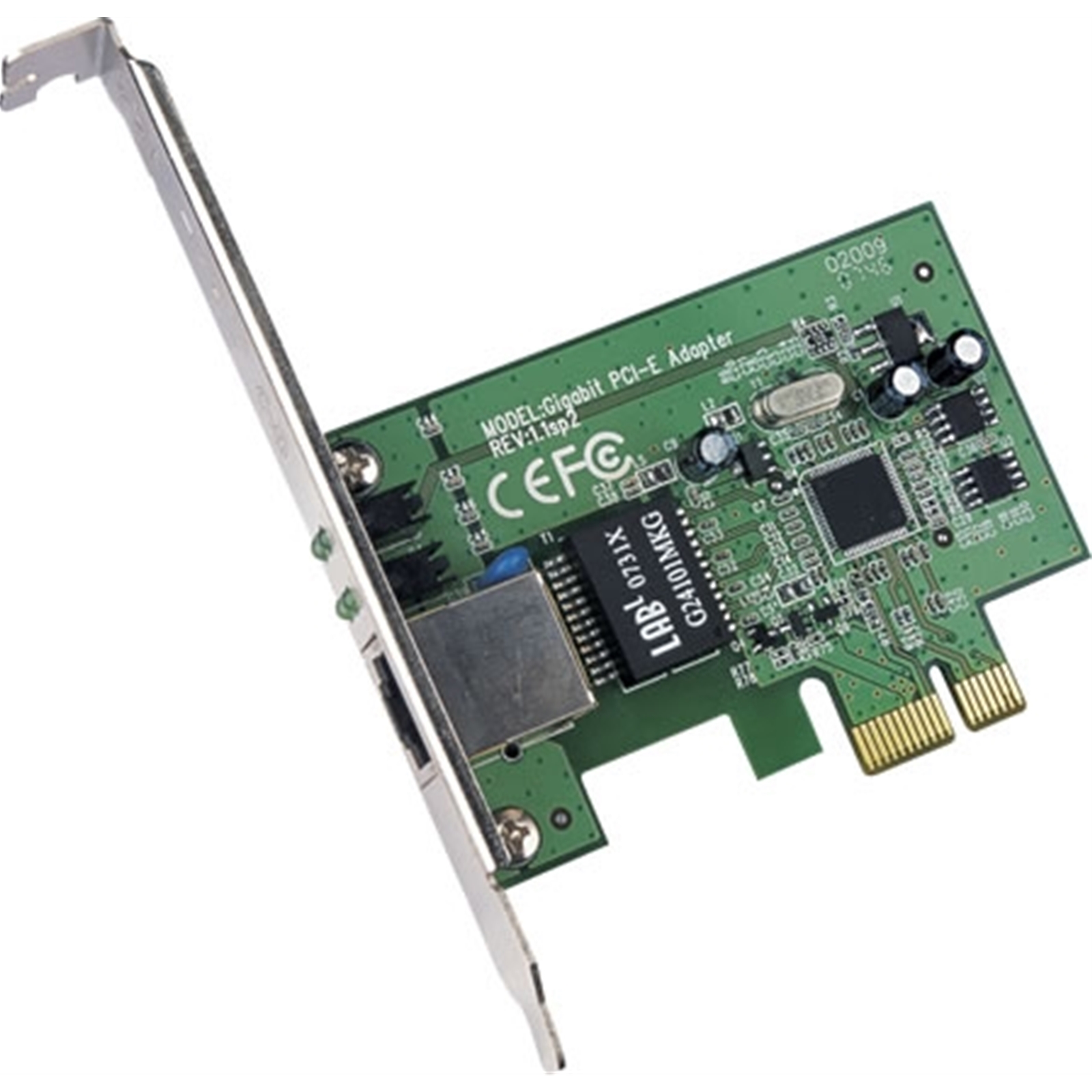

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

Specification:

Product Description:
TP-LINK (TG-3468) Gigabit PCI Express Network Adapter

Adapter Type:
PCI Express Adapter

Interface(s):
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Transmission Method:
Wired

Max Data Transfer Rate:
10/100/1000 Mbps

Standards and Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

LED:
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control:
IEEE 802.3x Flow Control (Full-Duplex)

Environment (?):
Operating Temperature:
0C~40C (32F~104F)

Storage Temperature:
-40C~70C (-40F~158F)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90

Package Contents:
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide% non-condensing

Features

Interface
32-bit PCI Express / 1 10/100/1000Mbps RJ45 port

Data Rates
10/100/1000Mbps Half-Duplex / 20/200/2000Mbps Full-Duplex

LED Indicator
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)

Supports
Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit
