Description

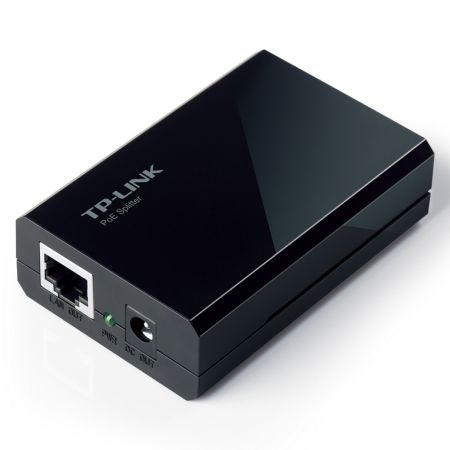

PoE Splitter
TL-POE10R
- IEEE 802.3af compliant
- Selectable power output
- Gigabit speed support
- Plug-and-Play, requires no configuration
What This Product Does
The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Description
Specification
- Interface(s): 2 x 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 x 48VDC POWER INPUT PORT - Dimensions: 3.2 x 2.1 x 0.9 in.(80.8 x 54 x 24 mm)
- LED Indicator: PWR
- Power Supply: “12VDC 1A, 9VDC 1A, 5VDC 2A”
- Basic Function: “Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply” - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide - Package Type: Retail
- Package Weight: 0.2400 kg
- Warranty: 2 Years
