Description
PoE++ Injector
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
What This Product Does

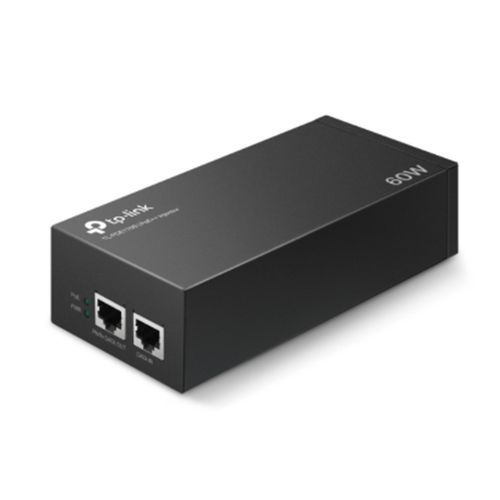

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.
Description
Specification
- Interface(s): 1 x 10/100/1000Mbps RJ45 data-in port
1 x 10/100/1000Mbps RJ45 power+data-out port
1 x AC socket - Dimensions: 155 x 70 x 42 mm
- Power Supply: “Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)”
- Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play - Environment: Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing - Package Contents: PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable - Package Type: Retail
- Package Weight: 0.9500 kg
- Warranty: 2 Years
