Description

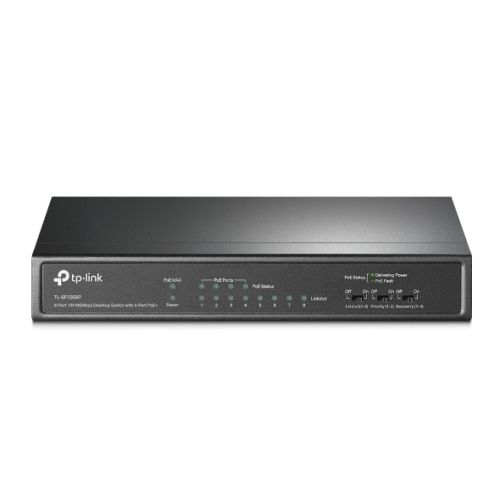

8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 8x 10/100 Mbps RJ45 ports
- 4x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 66 W for all PoE ports
- Up to 250m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Dedicated 8-Port Switch with 4-Port PoE+ (66 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 66 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Dedicated Design for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 66 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008P delivers switching performance you can depend on.
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 8 x 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 66 W - Switching Capacity: 1.6 Gbps
- Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
- Dimensions: 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 1.1904 Mpps
- Jumbo Frame: 2 KB
- Additional Features: See Overview
- Security: Physical Security Lock
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SF1008P
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 1.0800 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
