Description

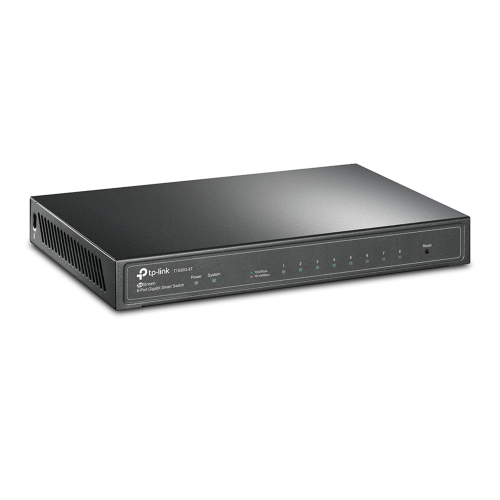

JetStream 8-Port Gigabit Smart Switch
- Full Gigabit Ports: 8x gigabit RJ45 ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Bandwidth: 16 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Power Supply: 12 VDC/1 A External Adapter or
Obtain Power from PoE Source - Dimensions: 209 x 126 x 26 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: L2 and L2+:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - VLAN: VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG2008
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.9140 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
