Description

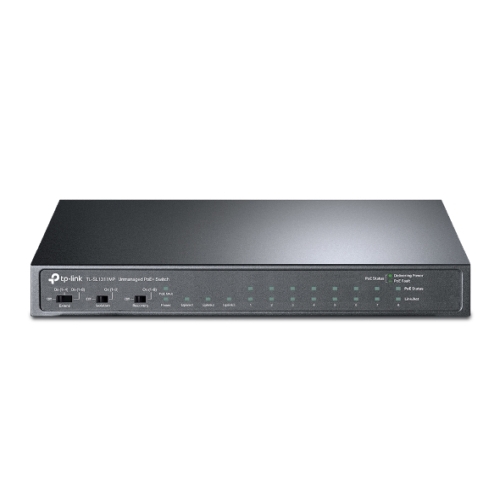

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
- 8 x 10/100 Mbps RJ45 Ports, 2 Gigabit RJ45 Ports, 1 Gigabit SFP Port
- 8 x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 124 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance-Long-Range PoE Transmission and One-Click Traffic Separation
With Extend Mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance.
Intelligent Power Management
When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x 10/100 Mbps 802.3af/at PoE+ Ports
2 Gigabit RJ45 Ports
1 Gigabit SFP Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 124 W - Switching Capacity: 7.6 Gbps
- Power Supply: External Power Adapter: Output: 53.5VDC / 2.43A
- Dimensions: 209 x 126 x 26 mm
- Mac Address Table: 2K
- Packet Forwarding Rate: 5.6544 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button
Isolation Mode Button
PoE Auto Recovery Button
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode - Security: Physical Security Lock
- Environment: Operating Temperature: 0-40 (32-104 )
Storage Temperature: -40-70 (-40-158 )
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing - Package Contents: TL-SL1311MP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.5940 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
