Description

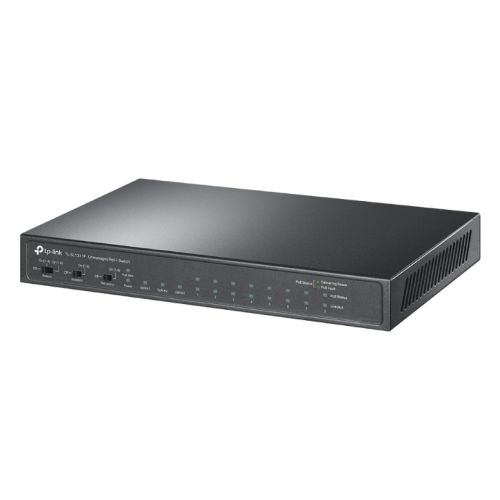

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x10/100 Mbps 802.3af/at PoE+ Ports
2 x Gigabit RJ45 Ports
1 x Gigabit SFP Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 65 W - Switching Capacity: 7.6 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: (WxDxH) 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 5.6544 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4 & Ports 1–8, Up to 250m PoE power & data transmission)
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode” - Security: Physical Security Lock
- Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SL1311P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.3300 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
