Description

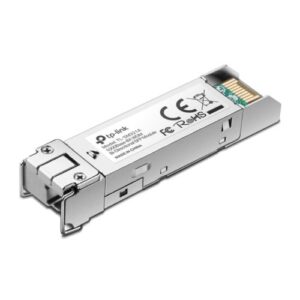

1000Base-BX WDM Bi-Directional SFP Module
- Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A as a pair
What This Product Does
TP-Link´s TL-SM321B adopts the latest standard 1000Base-BX, transmitting over one single-mode fiber with one different wavelength going in each direction. Paired with TL-SM321A, You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters for reliable high-speed long-distance communication.
Description
Specification
- Device Type: SFP Module
- Standards and Protocols: “IEEE 802.3z, TCP/IP”
- Cable: Single-mode Fiber
- Fiber Type: 9/125 um Single-mode
- Max. Cable Length: 20k m
- Data Rate: 1.25 Gbps
- Wave Length: TX: 1310 nm
RX: 1550 nm - Port Type: LC Simplex
- Power Supply: 3.3V
- Environment: “Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing” - Package Contents: SFP Module TL-SM321B
Installation Guide - Package Type: Retail
- Package Weight: 0.0300 kg
- Warranty: Limited Lifetime
