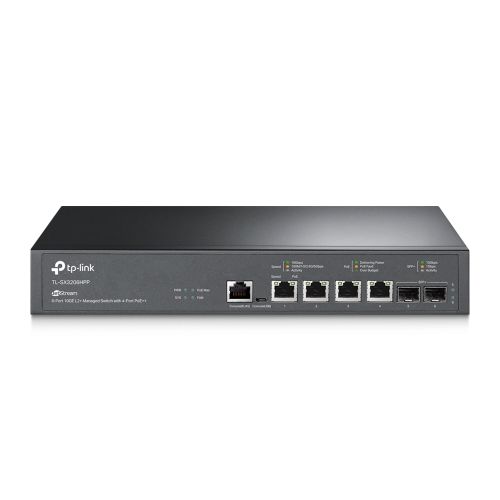

JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
- Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
- PoE++ Output with 200 W Power Budget: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Lightning-Fast Connection with Full 10GE Ports
Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.
Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices. PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reduces unnecessary traffic. IGMP throttling & filtering restricts subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features**
Internet Service Providers (ISPs) get the support they need with features including DDM, sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10 Gbps
- Interface(s): 4 x 100/1000/2500/5000/10000 Mbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3bt/at/af compliant
PoE+ Ports: 4 Ports, up to 60 W per port
Power Budget: 200 W” - Switching Capacity: 120 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: (WxDxH) 294 x 180 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 89.28 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Support Omada Hardware (OC200/OC300), Software & Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)” - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast:
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profileL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 10 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–50°C (32–122°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SX3206HPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.6400 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
