Description

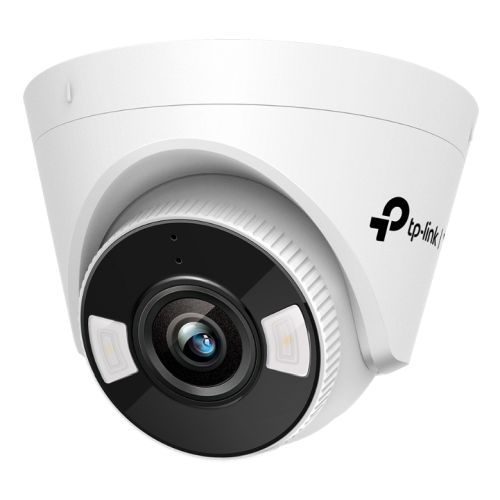

VIGI 5MP Full-Color Turret Network Camera
- 5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency*
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
*These features are in development and will update with future software iterations
24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.
Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled./
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Description
Specification
- Suitable for Outdoor: No
- Wired/Wireless: Wired
- Interface(s): “1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
DC Power Port
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB” - Image Sensor: 1/2.7″” Progressive Scan CMOS
- Resolution: “Main Stream:
2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720Sub-Stream:
704×576, 640×480, 352×288, 320×240″ - Frame Rate: “Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsSub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsNote: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.”
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 - Lens: Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
Lens Mount: M12*P 0.5
DORI Distance:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft) - Viewing Angle: Horizontal FOV: 90°
Vertical FOV: 48°
Diagonal FOV: 107° - Pan/Tilt Range: Pan: 0° to 360°
Tilt: 0° to 85° - Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Day/Night/Auto/Schedule-Switch - Minimum Illumination: “0.005 Lux; 0 Lux with IR/white light”
- Image Settings: “Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software”
- Audio Features: Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw) - Alarm & Event Management: “Smart Event:
Human & Vehicle Classification, Area Intrusion, Line-Crossing, People, Vehicle, Region Entering, Region Exiting, Object Abandoned, Object Removal, LoiteringBasic Event:
Motion, Video Tampering, Exception (Illegal Login), Scene ChangeAlarm Linkage:
Memory Card Video Recording, Message Push, White Light FlashingOutput Notification:
Message Push” - Network: “Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Cloud: Yes
ONVIF: Yes”
- Security: “Network Security:
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication” - Management: VIGI App
- Power Supply: “12V DC +/- 5%, Max. 9 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.5 W” - Weight/Dimensions: 0.24 kg
123 x 84 mm - Environment: Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing) - Package Contents: VIGI Network Camera
Quick Start Guide
Mounting Accessories - Package Weight: 0.3900 kg
- Warranty: 3 Years
