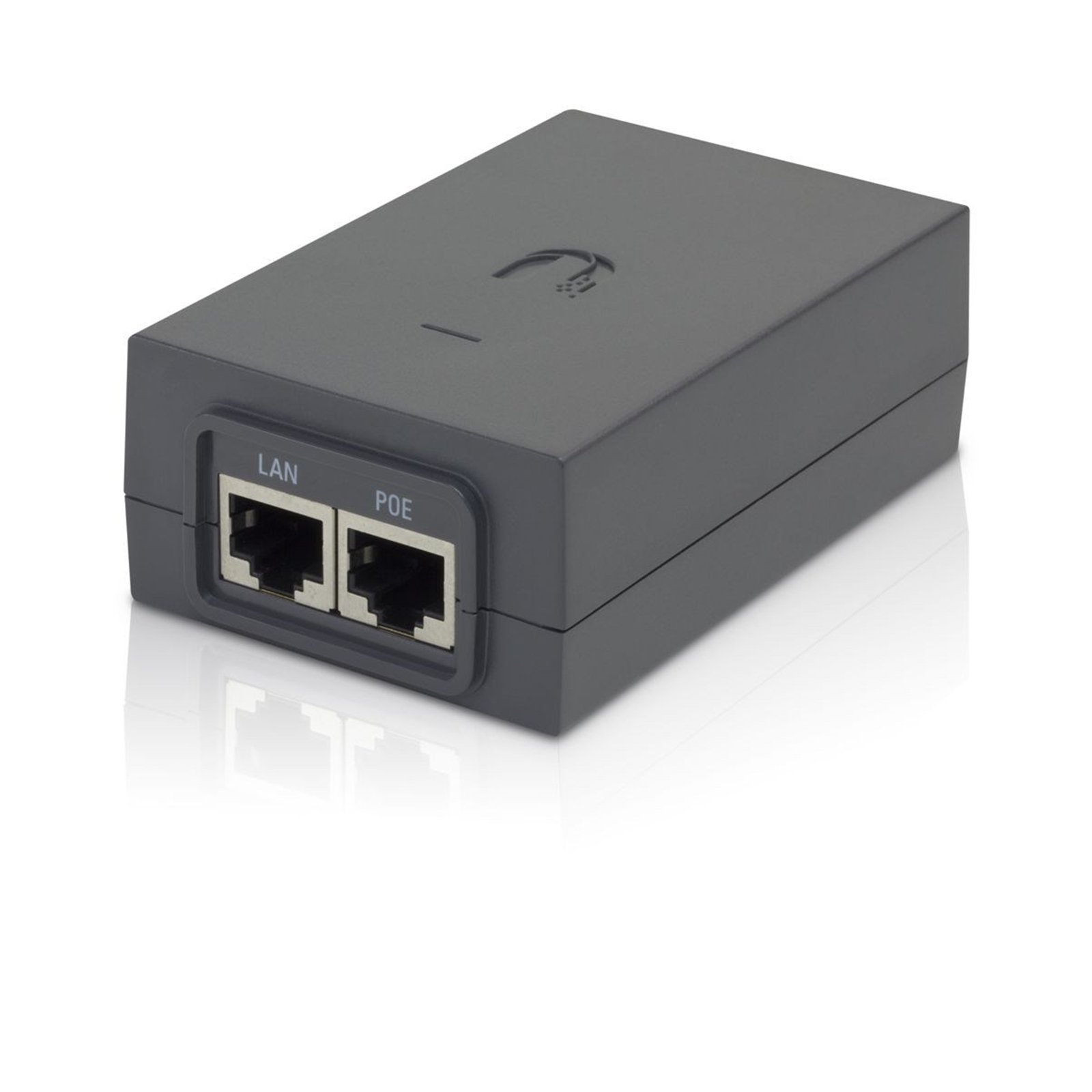

Description

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
– airFiber
– airMAX
– EdgeMAX
– mFi
– UniFi AP
– UniFi Video / airVision
*Check product specifications to verify PoE compatibility.

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway is available in three models:
– airGateway Standard model with an internal antenna
– airGateway Pro Dual-Band Wi-Fi model with an internal antenna
– airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

Dimensions ( W x H x D )
96 x 62 x 35 mm

Output Voltage
48VDC @ 0.5A

LAN Activity Indicator
No

Gigabit LAN Port
Yes

Remote Reset Capability
No

Reset Button
No

Input Voltage
90-260VAC @ 47-63 Hz

Input Current
0.6A @ 120VAC,
0.4A @ 240VAC

Inrush Current
<65A Peak @ 120VAC,
<130A Peak @ 230VAC Efficiency
80+%

Output Ripple
1% Max.

Switching Frequency
65 kHz

Line Regulation
± 1%

Load Regulation
± 3%

2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)

Operating Temperature
0 to 40° C (32 to 104° F)

Storage Temperature
-30 to 70°C (-22 to 158° F)

Operating Humidity
35 to 95% Noncondensing

AC Connector
IEC-320 C6

Data IN / POE
RJ45 Shielded Socket

Surge Protection
Difference and Common Mode

Clamping Protection
11V Data, 60V Power

Max. Surge Discharge
1500A (8/20 ìs) Power

Peak Pulse Current
36A (10/1000 ìs) Data

Shunt Capacitance
<5 pF data Response Time
<1 ns Compliance
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
