Description
Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Features
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
Powered using PoE
GbE uplink
Versatile wall, ceiling, and pole mounting
2 x RP-SMA connectors for optional external antennas*
Weatherproof (outdoor exposed)
*Omnidirectional and directional antenna accessories coming soon.

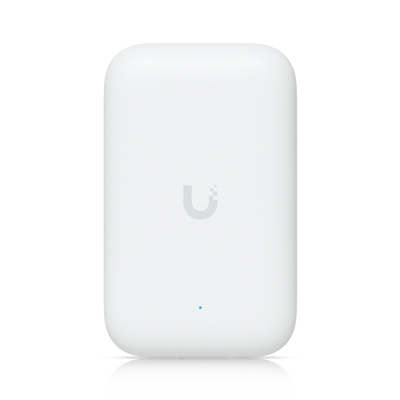

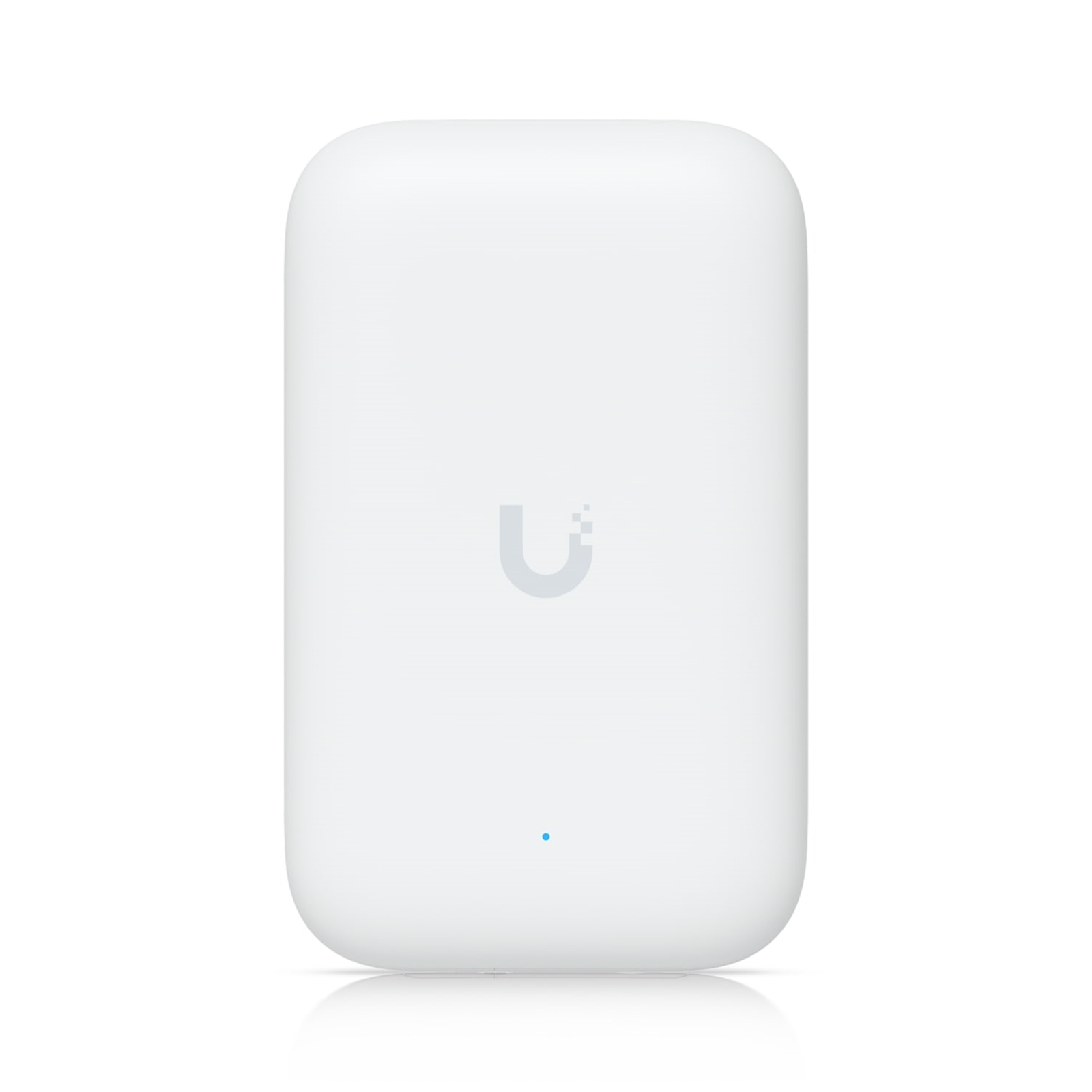

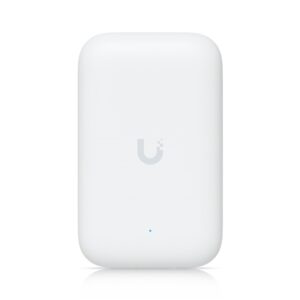

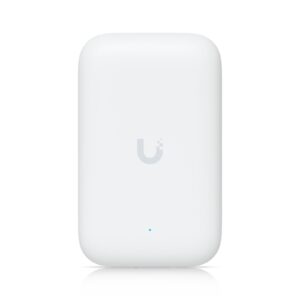

Ubiquiti UniFi UK-Ultra “Swiss Army Knife” Access Point
UniFi UK-Ultra supports wireless standards 8021.11a/b/g/n/ac in a 2×2 MIMO configuration for both frequency bands and can handle 200+ connected clients.
UniFi UK-Ultra fearures a pair of RSMA connectors, where an omnidirectional or sectoral external antenna can be connected to increase the transmitter’s range.
The UniFi UK-Ultra Access Point offers a wide range of mounting options on walls, ceilings, or poles, with mounting accessories included in the package.
Specifications
Mechanical
Weight &Dimensions
137 x 84 x 34 mm (5.4 x 3.3 x 1.3″)
173 g (6.1 oz)
Enclosure materials
UV-stabilized polycarbonate
Mount materials
Polycarbonate, SGCC steel, plastic
Pole mount diameter
1~2″ on pipe outer diameter
Wind survivability
33.2 N at 200 km/h (7.5 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Networking interface
(1) GbE RJ45 port
Management interface
Ethernet
Power method
PoE
Power supply
UniFi PoE Switch
Supported voltage range
44—57V DC
Max. power consumption
8W
Max. TX power
2.4 GHz – 20 dBm
5 GHz – 20 dBm
MIMO
2.4 GHz – 2 x 2
5 GHz – 2 x 2
Throughput rate
2.4 GHz – 300 Mbps
5 GHz – 866.7 Mbps
Antenna gain
2.4 GHz – 6 dBi
5 GHz – 6 dBi
Antenna
(1) Internal antenna
(2) RP-SMA connectors for optional external antennas
LEDs
(1) Power: white/blue
(4) Mesh signal: blue
Button
Factory reset
Mounting
Wall, ceiling, pole mount (Included)
Operating temperature
-40 to 60° C (-40 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
WiFi standards
802.11a/b/g/n/ac
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
200+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Application Requirements
UniFi Network
Web: Version 8.0.7 and later
iOS: Version 10.11.1 and later
Android: Version 10.10.1 and later
